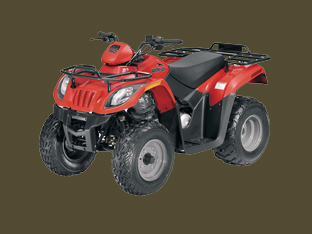

Arctic Cat 150 2x4 2010 specs
Below are some specifications of the Arctic Cat 150 2x4 2010 model
ATV Type : Utility Quad Bikes
Engine - Engine Detail : SOHC, 4-stroke, 2-valve
- Engine Capacity : 149cc
- Valve Spec : SOHC
- Type : 4-stroke
- Cooling : Air / Oil-Cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 62mm x 49.5mm
Gearbox Fuel - Fuel Tank Capacity (Gal) : 2.3 gal.
- Fuel Tank Capacity (Liters) : 9 liters
Dimensions and Weight - Length (Inches) : 69.9 in
- Width (Inches) : 37.4 in
- Height (Inches) : 40.9 in
- Seat Height (Inches) : 0 in
- Ground Clearance (Inches) : 7.5 in
- Wheelbase (Inches) : 43.9 in
- Dry Weight (Lbs) : 386 lb
- Length (mm) : 1775mm
- Width (mm) : 950mm
- Height (mm) : 1039mm
- Ground Clearance (mm) : 191mm
- Wheelbase (mm) : 1115mm
- Dry Weight (Kg) : 175 kg
Suspension, Brakes and Tires - Suspension - Front : Single A-arm; 3.5 in. (8.9 cm) travel
- Suspension - Rear : Swing arm; 3.5 in. (8.9 cm) travel
- Brakes - Front : Drum
- Brakes - Rear : Hydraulic disc
- Tires - Front : 21 x 7-10
- Tires - Rear : 22 x 10-10
Carry Racks - Rack Capacity - Front (Lbs) : 25 lb
- Rack Capacity - Front (Kg) : 11 kg
- Rack Capacity - Rear (Lbs) : 50 lb
- Rack Capacity - Rear (Kg) : 23 kg
Towing Capacity - Towing Capacity (Lbs) : 300 lb
- Towing Capacity (Kg) : 136 kg
|
