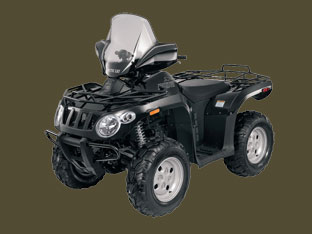

Arctic Cat 366 SE 2010 specs
Below are some specifications of the Arctic Cat 366 SE 2010 model
ATV Type : Utility Quad Bikes
Engine - Engine Detail : SOHC, 4-stroke, 4-valve
- Engine Capacity : 366cc
- Valve Spec : SOHC
- Type : 4-stroke
- Cooling : Air / Oil-Cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 81mm x 71.2mm
Gearbox Fuel - Fuel Tank Capacity (Gal) : 4.3 gal.
- Fuel Tank Capacity (Liters) : 16 liters
Dimensions and Weight - Length (Inches) : 81 in
- Width (Inches) : 44 in
- Height (Inches) : 46.6 in
- Seat Height (Inches) : 0 in
- Ground Clearance (Inches) : 10 in
- Wheelbase (Inches) : 48 in
- Dry Weight (Lbs) : 570 lb
- Length (mm) : 2057mm
- Width (mm) : 1118mm
- Height (mm) : 1184mm
- Ground Clearance (mm) : 254mm
- Wheelbase (mm) : 1219mm
- Dry Weight (Kg) : 259 kg
Suspension, Brakes and Tires - Suspension - Front : Double A-arm; 7 in. (17.8 cm) travel
- Suspension - Rear : Double A-arm; 7 in. (17.8 cm) travel
- Brakes - Front : Hydraulic disc
- Brakes - Rear : Hydraulic disc
- Tires - Front : 24 x 8-12
- Tires - Rear : 24 x 10-12
Carry Racks - Rack Capacity - Front (Lbs) : 75 lb
- Rack Capacity - Front (Kg) : 34 kg
- Rack Capacity - Rear (Lbs) : 150 lb
- Rack Capacity - Rear (Kg) : 68 kg
Towing Capacity - Towing Capacity (Lbs) : 1050 lb
- Towing Capacity (Kg) : 476 kg
|
