2010 Arctic Cat 550 S LTD ATV Specs South Africa

2010 Arctic Cat 550 S LTD specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

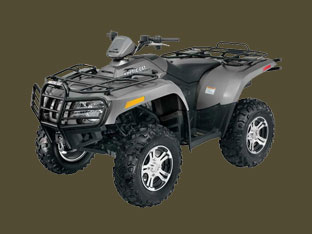

Arctic Cat 550 S LTD

Arctic Cat 550 S LTD 2010

Make

Arctic Cat

Model

550

Year

2010

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison
Engine Spec
Engine Detail: SOHC, 4-stroke, 4-valve
Engine Capacity (cc / Ci ): 545cc / 33.3
Engine Valves: SOHC
Valve Configuration: 4-valves
Total Valves: 4
Engine Type: 4-stroke
Engine Cooling: Liquid-Cooled with fan
Engine Cylinders: single-cylinder
Engine Braking: Engine Braking System
Displacement To Weight CC: 0.79
Bore Stroke(mm): 92mm x 82mm
Bore Stroke(in): 3.62in. x 3.23in.
Fuel System: Fuel Injected
Fuel Type: Petrol
Ignition: Electric / Pull
Brakes
Brakes Front: Hydraulic disc
Brakes Rear: Hydraulic disc
Linked Brake System Front to Rear: Standard
Suspension
Front Suspension: Double A-arm; 10 in. (25.4 cm) travel
A-Arm Skid Plate (Front): Yes
Suspension - Front Travel (mm / in.): 254 / 10
Front Adjustable Fork Pre-Load: Yes
Front Adjustable Rebound Damping: No
Suspension Rear: Double A-arm; 10 in. (25.4 cm) travel
A-Arm Skid Plate (Rear): Yes
Swing Arm Skid Plate: No
Rear Travel (mm / in.): 254 / 10
Rear Adjustable Rebound Damping: No
Rear Adjustable Shock Spring Pre-Load: Yes
Number of Rear Shock Absorbers: 2
Air Adjustable: No
Dimensions and Weight
Length (mm / in.): 2154 / 84.8
Width (mm / in.): 1207 / 47.5
Height (mm / in.): 1219 / 48
Ground Clearance (mm / in.): 279 / 11
Wheelbase (mm / in.): 1270 / 50
Dry Weight (Kg / Lbs.): 313.9 / 692
Wet Weight (Lbs. / Kg): 3000/1360.8
Transmission (Gearbox) and Final Drive
Transmission: Continuously Variable (CVT)
Transmission Make: Duramatic
Final Drive: 2/4 WD + differential lock 4x4
Drive line Modes: 2
Primary Drive Engine / Transmission: Belt
Primary Drive - Front Wheels: Shaft
Diff Lock Location: Front
Hi / Low Range: Yes
Reverse: Yes
Tires and Rims
Tire Make: Goodyear
Tires Front: 25 x 8-12
Front Tire Diameter (in): 25
Front Tire Width (in): 8
Front Rim Diameter (in): 12
Tires Rear: 25 x 10-12
Rear Tire Diameter (in): 25
Rear Tire Width (in): 10
Rear Rim Diameter (in): 12
Rim Material: Aluminum
Rear Solid Axle: No
Fuel
Fuel Tank Capacity (l / gal.): 22 / 5.7
Racks and Payload
Rack Capacity Front (Kg / Lbs.): 45 / 100
Rack Capacity Rear (Kg / Lbs.): 91 / 200
Storage
Storage Capacity (Kg / Lbs.): 45.4 / 100
Underseat Storage: Standard
Tool Bag Mount: Standard
Glove Box / Dashboard Storage: Standard
Seats
Number Of Seats: 1
Seat Location: Driver
Seat Material: Vinyl
Seat Type: One-Piece
Seat Adjustable: No
Towing
Tow Hook: Standard
Rear Hitch: Receiver
Towing Capacity (Kg / Lbs.): 476 / 1050
Instrumentation
Digital Instrumentation: Standard
Trip Computer: Standard
Trip Odometer: Standard
Clock: Standard
Fuel Level Warning Type: Gauge
Hour Meter: Standard
Service Reminder: Standard
Speedometer: Standard
Tachometer: Standard
Temperature Warning Type: Gauge
Lighting
Lighting: Halogen
Headlights: Standard
Halogen Headlights: Standard
Exterior - Safety and Design
Bash Plate (Front): Yes
Body Material: Plastic
Brush Guard: Yes
CV Boot Cover: Yes
Floor Board Location: Driver
Folding Foot Pegs: No
Frame: Steel
Front Bumper: Standard
Front Fender Flairs: Standard
Front Fender: Standard
Front Stabilizer Bar: No
Full Length Skid Plate: Yes
Hand Grips: Standard
Light Guard: Yes
Power Outlet: Standard
Radiator Guard: Yes
Rear Bumper: Standard
Rear Fender: Standard
Rear Fender Flairs: Standard
Winch
Winch Make: Warn
Roller Fairlead: Standard
Steering
Steering Type: Power
Steering Make: Electronic Power Steering (EPS)
Manufacturer and Warranty
Manufacturer Country: USA
Recommend Minimum Age: 16
Parent Company: Arctic Cat
