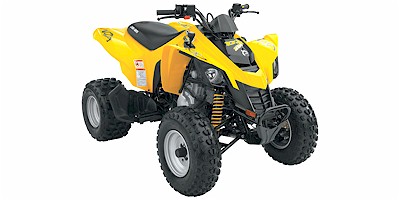

Can-Am DS 250 2007 specs
Below are some specifications of the Can-Am DS 250 2007 model
ATV Type : Racing Quad Bikes
Model ID : DS250
Engine - Engine Detail : 4-stroke, single, 4-valve SOHC
- Engine Capacity : 249.4 cc
- Valve Spec : SOHC
- Type : 4-stroke
- Cooling : Liquid-cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 71 mm x 63 mm
- Ignition : Electric
- Torque : 20 Nm @ 5500 RPM
Gearbox - Transmission : Automatic CVT, sub-transmission with forward, neutral & reverse
- Final Drive : Chain driven/solid axle
Fuel - Fuel System : Keihin PTG 23
- Fuel Tank Capacity (Gal) : 3.3 gal.
- Fuel Tank Capacity (Liters) : 12.5 liters
Dimensions and Weight - Length (Inches) : 72 in
- Width (Inches) : 40.5 in
- Height (Inches) : 43.5 in
- Seat Height (Inches) : 31.5 in
- Ground Clearance (Inches) : 10.2 in
- Wheelbase (Inches) : 47 in
- Dry Weight (Lbs) : 429 lb
- Length (mm) : 1830mm
- Width (mm) : 1030mm
- Height (mm) : 1105mm
- Seat Height (mm) : 800mm
- Ground Clearance (mm) : 260mm
- Wheelbase (mm) : 1194mm
- Dry Weight (Kg) : 195 kg
Suspension, Brakes and Tires - Suspension - Front : Double A-arm, 5 position adjustable pre-load; 5.5 in. travel (140 mm)
- Suspension - Rear : Swingarm, 5 position adjustable pre-load; 6.7 in. travel (170 mm)
- Brakes - Front : Dual hydraulic discs
- Brakes - Rear : Single hydraulic disc
- Tires - Front : 22 x 7 x 10 in. (559 x 178 x 254 mm)
- Tires - Rear : 20 x 11 x 9 in. (508 x 279 x 229 mm)
Instrumentation and Lighting - Instumentation : Neutral light, reverse light, and oil/temperature light
- Lighting : 2 headlamps (35W) w/ tail light/brake light - EC approved, 4 flashers (EC version only)
