2007 Can-Am ATV & Quad Bike Specs

Engine Spec

Engine Detail: 652 cc, 4-stroke, single, 4-valve DOHC

Engine Detail: 4-stroke, single, 4-valve DOHC

Engine Capacity (cc / Ci ): 652 cc / 39.8

Engine Capacity (cc / Ci ): 652cc / 39.79

Engine Valves: DOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-stroke

Engine Cooling: Liquid-cooled

Engine Cooling: Liquid-Cooled

Engine Cylinders: single-cylinder

Engine Cylinders: Single-Cylinder

Engine Make: Rotax®

Displacement To Weight CC: 1.32

Bore Stroke(mm): 100 mm x 83 mm

Bore Stroke(mm): 100mm x 83mm

Bore Stroke(in): 3.94in. x 3.27 in.

Bore Stroke(in): 3.94in. x 3.27in.

Fuel System: Mikuni BSR 42

Fuel System: Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 42

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric

Speed Governor: No

Brakes

Brakes Front: 2 inboard hydraulic discs

Brakes Front: 2 hydraulic discs

Brakes Rear: 1 inboard hydraulic disc

Brakes Rear: 1 hydraulic disc

Suspension

Front Suspension: Double A-arm; 12 in. travel (305 mm)

Front Suspension: Double A-arm; 12 in. (305 mm) travel

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 305 / 12

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm; 11 in. travel (279 mm)

Suspension Rear: Swingarm; 11 in. (279 mm) travel

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: Yes

Rear Travel (mm / in.): 279 / 11

Rear Adjustable Rebound Damping: Yes

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1956 / 77

Width (mm / in.): 1219 / 48

Height (mm / in.): 1194 / 47

Ground Clearance (mm / in.): 297 / 11.7

Wheelbase (mm / in.): 1244 / 49

Dry Weight (Kg / Lbs.): 225 / 494

Transmission (Gearbox) and Final Drive

Transmission: 5 speed - manual clutch

Transmission: Manual

Final Drive: Chain driven/solid axle

Final Drive: 4X2

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Number Of Speeds: 5

Reverse: No

Tires and Rims

Tire Make: Ohtsu®

Tires Front: 22 x 7 x 10 in. (559 x 178 x 254 mm)

Front Tire Diameter (in): 22

Front Tire Width (in): 7

Front Rim Diameter (in): 10

Tires Rear: 20 x 10 x 9 in. (508 x 254 x 229 mm)

Rear Tire Diameter (in): 20

Rear Tire Width (in): 10

Rear Rim Diameter (in): 9

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 12 / 3.2

Seats

Seat Height (mm / in.): 857 / 33.8

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Instumentation: Indicator lamps: neutral, engine temperature. Tachometer

Tachometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: 1 headlamp dual bulb (30 W), 2 halogen auxiliary (35 W) w/ tail light/brake light

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Black

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Fiberglass

Brush Guard: No

CV Boot Cover: No

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Full Length Skid Plate: Yes

Hand Grips: Standard

Hand Guards: Yes

Handlebar Pads: Standard

Light Guard: No

Nerf Bars: Standard

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: Yes

Steering

Steering Type: Manual

Performance

Torque (Nm): 57 nm @ 5.500 RPM

Torque (Nm): 57

Torque (Ft Lbs.): 42

Torque rpm: 5500

Manufacturer and Warranty

Manufacturer Country: Canada

Recommend Minimum Age: 16

Parent Company: Can-Am™

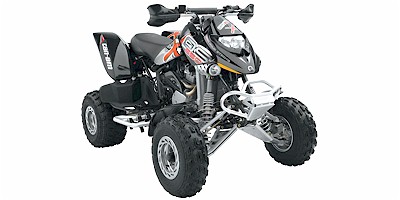

2007 Can-Am DS 650 X ATV Specs South Africa

Can-Am DS 650 X 2007
