2007 Can-Am DS 90 4-Stroke ATV Specs South Africa

2007 Can-Am DS 90 4-Stroke specs for South Africa:Kids Quad Bikes. Prices, reviews, where to buy.

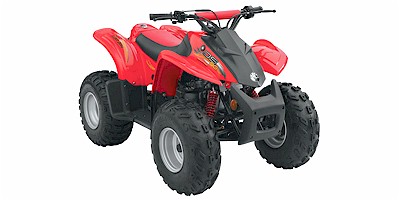

Can-Am DS 90 4-Stroke

Can-Am DS 90 4-Stroke 2007

Make

Can-Am

Model

DS

Year

2007

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 4-stroke, single

Engine Capacity (cc / Ci ): 90cc / 5.49

Engine Valves: OHV

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-stroke

Engine Cooling: Air / Oil-Cooled

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.36

Bore Stroke(mm): 50mm x 41mm

Bore Stroke(in): 1.97in. x 1.62in.

Fuel System: Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 16

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Kick

Speed Governor: Yes

Brakes

Brakes Front: Double drum

Brakes Rear: Drum

Suspension

Front Suspension: Independent A-arm; 1.38 in. (35 mm) travel

Suspension - Front Travel (mm / in.): 35 / 1.38

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Single shock; 2 in. (50 mm) travel

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 51 / 2

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1524 / 60

Width (mm / in.): 889 / 35

Height (mm / in.): 899 / 35.4

Ground Clearance (mm / in.): 203 / 8

Wheelbase (mm / in.): 955 / 38

Dry Weight (Kg / Lbs.): 113 / 249

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: No

Tires and Rims

Tires Front: 20 x 7 x 8 in. (508 x 178 x 203 mm)

Front Tire Diameter (in): 20

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: 19 x 8 x 8 in. (483 x 203 x 203 mm)

Rear Tire Diameter (in): 19

Rear Tire Width (in): 8

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 6 / 1.6

Seats

Seat Height (mm / in.): 700 / 27.6

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Hand Grips: Standard

Hand Guards: No

Handlebar Pads: Standard

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Canada

Recommend Minimum Age: 12

Parent Company: Can-Am
