2020 Can-Am DS 90 X ATV Specs South Africa

2020 Can-Am DS 90 X specs for South Africa:Kids Quad Bikes. Prices, reviews, where to buy.

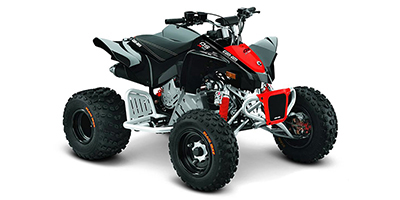

Can-Am DS 90 X

Can-Am DS 90 X 2020

Make

Can-Am

Model

DS

Year

2020

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 89.5 / 5.46

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Air

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.36

Bore Stroke(mm): 49.5mm x 48mm

Bore Stroke(in): 1.95in. x 1.89in.

Fuel System: Carburetor

Fuel System Brand: Keihin

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Kick

Kill Switch Tether Cord: Standard

Speed Governor: Yes

Brakes

Brakes Front: Dual Hydraulic Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: Double A-Arm

Front Suspension - Size (in/mm): 43 / 1092

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 178 / 7

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

Suspension Rear - Size (in/mm): 41 / 1041

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 229 / 9

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1518 / 59.76

Width (mm / in.): 1110 / 43.7

Height (mm / in.): 970 / 38.2

Ground Clearance (mm / in.): 211 / 8.3

Wheelbase (mm / in.): 1000 / 39

Dry Weight (Kg / Lbs.): 113 / 250

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: Yes

Tires and Rims

Tire Make: Kenda

Tires Front: Kenda Claw 20 x 6 - 10

Front Tire Diameter (in): 20

Front Tire Width (in): 6

Front Rim Diameter (in): 10

Tires Rear: Kenda Claw 18 x 10.5 - 8

Rear Tire Diameter (in): 18

Rear Tire Width (in): 10.5

Rear Rim Diameter (in): 8

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 6 / 1.6

Storage

Front Storage Well: Standard

Seats

Seat Height (mm / in.): 685 / 27

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Hand Guards: No

Handlebar Pads: Standard

Light Guard: No

Nerf Bars: Standard

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Canada

Recommend Minimum Age: 10

Parent Company: Can-Am™
