2007 Can-Am Outlander MAX 400 H.O.XT ATV Specs South Africa

2007 Can-Am Outlander MAX 400 H.O.XT specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

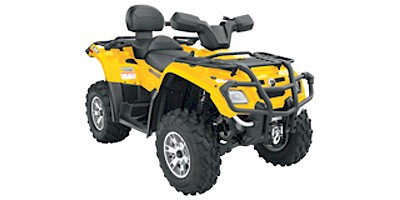

Can-Am Outlander MAX 400 H.O.XT

Can-Am Outlander MAX 400 H.O.XT 2007

Make

Can-Am

Model

Outlander

Year

2007

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 400 / 24.41

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Single-Cylinder

Engine Braking: Standard

Engine Make: Rotax Tec

Displacement To Weight CC: 0.61

Bore Stroke(mm): 91mm x 61.5mm

Bore Stroke(in): 3.59in. x 2.42in.

Fuel System: Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 33

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Pull

Speed Governor: No

Brakes

Brakes Front: In-Board Dual Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: McPherson Strut

Suspension - Front Travel (mm / in.): 178 / 7

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Independent

Suspension Rear - Make: Trailing Torsional Independent (TTI)

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 203 / 8

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): Unknown / 93.96

Width (mm / in.): 1168 / 46

Height (mm / in.): 1143 / 45

Ground Clearance (mm / in.): 236 / 9.3

Wheelbase (mm / in.): 1447 / 57

Dry Weight (Kg / Lbs.): 298 / 657

Wet Weight (Lbs. / Kg): 2500/1134

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: Selectable 4X2 / 4X4

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Diff Lock Location: Front

Diff Lock Make: ViscoLok

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Carlisle ACT

Tires Front: 25 X 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: 25 X 11-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 11

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 16 / 4.2

Storage

Storage Capacity (Kg / Lbs.): 45 / 100

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.24

Storage Capacity (gal): 1.8

Storage Capacity (l): 6.81

Seats

Seat Height (mm / in.): 889 / 35

Number Of Seats: 2

Seat Location: Driver and Passenger

Seat Material: Vinyl

Seat Type: Two-Piece

Seat Adjustable: No

Detachable Passenger Seat: Standard

Backrest Location: Passenger

Backrest Type: Detachable

Lumbar Adjustment: Yes

Towing

Rear Hitch: Standard

Towing Capacity (Kg / Lbs.): 500 / 1100

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: Yes

CV Boot Cover: Yes

Floor Board Location: Driver and Passenger

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Full Length Skid Plate: Yes

Grab Rail Or Strap: Standard

Hand Grips: Standard

Hand Guards: Yes

Light Guard: Yes

Power Outlet: Standard

Rear Bumper: Standard

Rear Fender: Standard

Winch

Winch Make: Warn

Roller Fairlead: Standard

Steering

Steering Type: Manual

Turning Circle: 6.6

Performance

Torque (Nm): 32

Torque (Ft Lbs.): 23.6

Torque rpm: 5500

Manufacturer and Warranty

Manufacturer Country: Canada

Recommend Minimum Age: 16

Parent Company: Can-Am
