2007 Can-Am ATV & Quad Bike Specs

Engine Spec

Engine Detail: 176cc, 4 -stroke,single,liquid-cooled, 4-valve SOHC

Engine Detail: 4-stroke, single, 4-valve SOHC

Engine Capacity (cc / Ci ): 176 cc / 10.7

Engine Capacity (cc / Ci ): 176cc / 10.74

Engine Valves: 4-valve

Engine Valves: 4-valve SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-stroke

Engine Cooling: liquid-cooled

Engine Cooling: Liquid-Cooled

Engine Cylinders: SOHC

Engine Cylinders: Single-Cylinder

Engine Braking: Standard

Engine Make: Rotax

Displacement To Weight CC: 0.45

Bore Stroke(mm): 62 mm x 58 mm

Bore Stroke(mm): 62mm x 58mm

Bore Stroke(in): 2.44in. x 2.29 in.

Bore Stroke(in): 2.44in. x 2.29in.

Fuel System: Mukini VM24

Fuel System: Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 24

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric start

Ignition: Electric

Speed Governor: No

Brakes

Brakes Front: Dual hydraulic discs

Brakes Front: 2 hydraulic discs

Brakes Rear: Hydraulic disc

Brakes Rear: 1 hydraulic disc

Suspension

Front Suspension: Independant A-arm with 5.4 in (137 mm) travel

Front Suspension: Independent A-arm; 5.4 in. (137 mm) travel

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 137 / 5.4

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Swing-arm with 6.4 in (163 mm) travel

Suspension Rear: Swingarm; 6.4 in. (163 mm) travel

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Rear Travel (mm / in.): 163 / 6.4

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2057 / 81

Width (mm / in.): 1054 / 41.5

Height (mm / in.): 1092 / 43

Ground Clearance (mm / in.): 229 / 9

Wheelbase (mm / in.): 1181 / 46

Dry Weight (Kg / Lbs.): 179 / 395

Transmission (Gearbox) and Final Drive

Transmission: CVT, sub-transmission w/ forward, neutral & reverse

Transmission: Continuously Variable (CVT)

Final Drive: Chain driven/solid axle

Final Drive: 4X2

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: Yes

Tires and Rims

Tires Front: 22 x 10 x 7

Tires Front: 22 x 10 x 7 in. (559 x 254 x 178 mm)

Front Tire Diameter (in): 22

Front Tire Width (in): 10

Front Rim Diameter (in): 7

Tires Rear: 22 x 10 x 10

Tires Rear: 22 x 10 x 10 in. (559 x 254 x 254 mm)

Rear Tire Diameter (in): 22

Rear Tire Width (in): 10

Rear Rim Diameter (in): 10

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 18.17 / 4.8

Fuel Tank Capacity (l / gal.): 18 / 4.8

Racks and Payload

Rack Capacity Front (Kg / Lbs.): 16 / 35

Rack Capacity Rear (Kg / Lbs.): 29 / 65

Storage

Storage Capacity (Kg / Lbs.): 16 / 35

Seats

Seat Height (mm / in.): 838 / 33

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Towing Capacity (Kg / Lbs.): 227 / 500

Instrumentation

Instumentation: Indicator lamps : reverse, neutral, oil pressure, engine temperature

Temperature Warning Type: Light

Lighting

Lighting: 2 fender mounted headlamps (35 W) w/ tail light/brake light - EC approved 4 Flashers (EC version only)

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Viper Red or Yellow

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Full Length Skid Plate: Yes

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Performance

Torque (Nm): 14.5 nm @ 6.500 RPM

Torque (Nm): 14.5

Torque (Ft Lbs.): 10.7

Torque rpm: 6500

Manufacturer and Warranty

Manufacturer Country: Canada

Recommend Minimum Age: 16

Parent Company: Can-Am

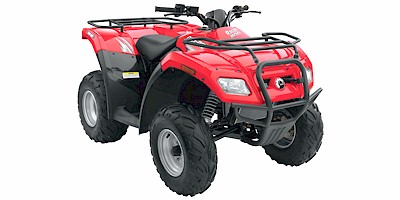

2007 Can-Am Rally 200 ATV Specs South Africa
