2020 Can-Am Renegade X mr 570 ATV Specs South Africa

2020 Can-Am Renegade X mr 570 specs for South Africa:Racing Quad Bikes. Prices, reviews, where to buy.

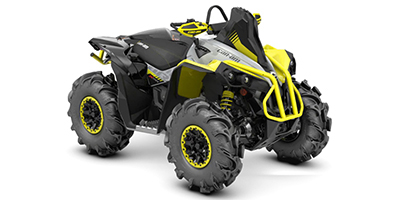

Can-Am Renegade X mr 570

Can-Am Renegade X mr 570 2020

Make

Can-Am

Model

Renegade

Year

2020

Type

Racing Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 570 / 34.78

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 8

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: V Twin

Engine Braking: Standard

Engine Make: Rotax

Engine Immobilizer: Digitally Encoded Security System (DESS)

Displacement To Weight CC: 0.66

Fuel System: Fuel Injected

Fuel Type: Petrol

Ignition: Electric

Speed Governor: No

Brakes

Brakes Front: Dual Hydraulic Disc

Front Brake Diameter (mm / in.): 214 / 8.4

Brakes Rear: Hydraulic Disc

Rear Brake Diameter (mm / in.): 214 / 8.4

Suspension

Front Suspension: Double A-Arm

Front Suspension Make: Fox Podium

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Independent

Suspension Rear - Make: Trailing Torsional Independent (TTI)

Suspension Rear - Material: Steel

Swing Arm Skid Plate: No

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2109 / 83.04

Width (mm / in.): 1270 / 50

Height (mm / in.): 1422 / 56

Ground Clearance (mm / in.): 305 / 12

Wheelbase (mm / in.): 1295 / 51

Dry Weight (Kg / Lbs.): 393 / 865

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: Selectable 4X2 / 4X4

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Diff Lock Location: Front

Diff Lock Make: ViscoLok

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: ITP

Tube / Tubeless: Tubeless

Tires Front: ITP Mega Mayhem 28 X 8 X 12

Front Tire Diameter (in): 28

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: ITP Mega Mayhem 28 X 10 X 12

Rear Tire Diameter (in): 28

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 20.5 / 5.4

Storage

Storage Capacity (Kg / Lbs.): 16 / 35

Rear Storage Well: Standard

Seats

Seat Height (mm / in.): 895 / 35.3

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Towing Capacity (Kg / Lbs.): 590 / 1300

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Tachometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: Yes

Decal Kit: Standard

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: Yes

Full Length Skid Plate: Yes

Hand Grips: Standard

Hand Guards: Yes

Handlebar Pads: Standard

Light Guard: No

Power Outlet: Standard

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Fender Flairs: Standard

Snorkel Air Intake: Standard

Steering

Steering Type: Power

Steering Make: Dynamic Power Steering (DPS)

Performance

Power Output(hp in Kw): 35.8

Horsepower Brake hp: 48

Manufacturer and Warranty

Manufacturer Country: Canada

Recommend Minimum Age: 16

Parent Company: Can-Am

Warranty Info: 6 Limited
