1999 Honda Foreman 400FW ATV Specs South Africa

1999 Honda Foreman 400FW specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

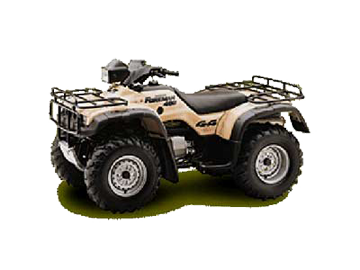

Honda Foreman TRX400FW 4x4

Honda Foreman TRX400FW 4x4 1999

Make

Honda

Model

Foreman

Year

1999

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison
Engine Spec
Engine Detail: 395cc, Air Cooled, OHV, sideways mounted, single cylinder, 4-Stroke
Engine Capacity (cc / Ci ): 395 / 24.10
Engine Valves: OHV, sideways mounted
Engine Type: 4-Stroke
Engine Cooling: Air-Cooled
Engine Cylinders: single-cylinder
Bore Stroke(mm): 86mm x 68mm
Ignition: Solid state CD
Brakes
Brakes Front: Dual Hydraulic Drum
Brakes Rear: Sealed Mechanical Drum
Suspension
Front Suspension: Independent double wishbone, 4.3
Suspension - Front Travel (mm / in.): 109 / 4.3
Suspension Rear: Swingarm with dual shocks, 4.3
Rear Travel (mm / in.): 109 / 4.3
Dimensions and Weight
Length (mm / in.): 1943 / 76.5
Width (mm / in.): 1156 / 45.5
Height (mm / in.): 1095 / 43.1
Ground Clearance (mm / in.): 185 / 7.3
Wheelbase (mm / in.): 1240 / 48.8
Dry Weight (Kg / Lbs.): 251 / 553.0
Transmission (Gearbox) and Final Drive
Transmission: 4x4
Tires and Rims
Tires Front: 24 x 8-11
Tires Rear: 24 x 10-11
Fuel
Fuel Tank Capacity (l / gal.): 12 / 3.2
Racks and Payload
Rack Capacity Front (Kg / Lbs.): 30 / 66
Rack Capacity Rear (Kg / Lbs.): 60 / 132
Seats
Seat Height (mm / in.): 785 / 30.9
Towing
Towing Capacity (Kg / Lbs.): 386 / 850
