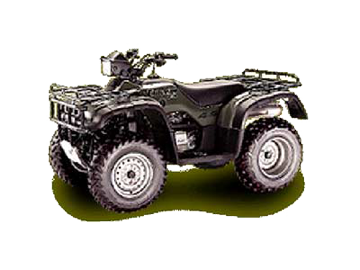

Honda Foreman TRX450ES 1999 specs
Below are some specifications of the Honda Foreman TRX450ES 1999 model
ATV Type : Utility Quad Bikes
Engine - Engine Detail : 432.6cc, Air Cooled, OHV, sideways mounted, single cylinder, 4-Stroke
- Engine Capacity : 432.6cc
- Valve Spec : OHV, sideways mounted
- Type : 4-Stroke
- Cooling : Air-Cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 90mm x 68mm
- Ignition : DC CD with electronic advance
Gearbox Fuel - Fuel Tank Capacity (Gal) : 3.2 gal.
- Fuel Tank Capacity (Liters) : 12 liters
Dimensions and Weight - Length (Inches) : 77.2 in
- Width (Inches) : 45.5 in
- Height (Inches) : 45 in
- Seat Height (Inches) : 33.8 in
- Ground Clearance (Inches) : 7.7 in
- Wheelbase (Inches) : 50 in
- Dry Weight (Lbs) : 586.0 lb
- Length (mm) : 1961mm
- Width (mm) : 1156mm
- Height (mm) : 1143mm
- Seat Height (mm) : 859mm
- Ground Clearance (mm) : 196mm
- Wheelbase (mm) : 1270mm
- Dry Weight (Kg) : 266 kg
Suspension, Brakes and Tires - Suspension - Front : Independent double wishbone, 5.9
- Suspension - Rear : Swingarm with dual shocks, 5.9
- Brakes - Front : Dual Sealed Hydraulic Drum
- Brakes - Rear : Sealed Mechanical Drum
- Tires - Front : 25 x 8-12
- Tires - Rear : 25 x 10-12
Carry Racks - Rack Capacity - Front (Lbs) : 66 lb
- Rack Capacity - Front (Kg) : 30 kg
- Rack Capacity - Rear (Lbs) : 132 lb
- Rack Capacity - Rear (Kg) : 60 kg
Towing Capacity - Towing Capacity (Lbs) : 850 lb
- Towing Capacity (Kg) : 386 kg
|
