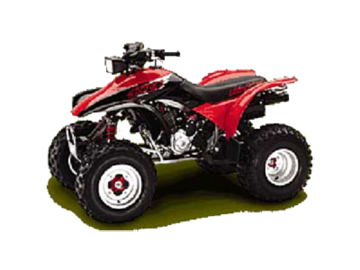

Honda FourTrax 300EX 1999 specs
Below are some specifications of the Honda FourTrax 300EX 1999 model
ATV Type : Utility Quad Bikes
Model ID : TRX300EX
Engine - Engine Detail : 282cc, Air Cooled, single cylinder, 4-Stroke
- Engine Capacity : 282cc
- Type : 4-Stroke
- Cooling : Air-Cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 74mm x 65.5mm
- Ignition : Solid state digital CD with electronic advance
Fuel - Fuel Tank Capacity (Gal) : 2.2 gal.
- Fuel Tank Capacity (Liters) : 8 liters
Dimensions and Weight - Length (Inches) : 67.7 in
- Width (Inches) : 43.5 in
- Height (Inches) : 42.7 in
- Seat Height (Inches) : 30.3 in
- Ground Clearance (Inches) : 4.9 in
- Wheelbase (Inches) : 45.3 in
- Dry Weight (Lbs) : 377.0 lb
- Length (mm) : 1720mm
- Width (mm) : 1105mm
- Height (mm) : 1085mm
- Seat Height (mm) : 770mm
- Ground Clearance (mm) : 124mm
- Wheelbase (mm) : 1151mm
- Dry Weight (Kg) : 171 kg
Suspension, Brakes and Tires - Suspension - Front : Double wishbone, dual hydraulic shocks, 5-way spring preload adj., 6.7
- Suspension - Rear : Swingarm with single shock, 5-way spring preload adj., 7.9
- Brakes - Front : Dual Disc
- Brakes - Rear : Single Disc
- Tires - Front : 22 x 7-10 knobby
- Tires - Rear : 22 x 10-9 knobby
Carry Racks - Rack Capacity - Front (Lbs) : 66 lb
- Rack Capacity - Front (Kg) : 30 kg
- Rack Capacity - Rear (Lbs) : 132 lb
- Rack Capacity - Rear (Kg) : 60 kg
Towing Capacity - Towing Capacity (Lbs) : 850 lb
- Towing Capacity (Kg) : 386 kg
|
