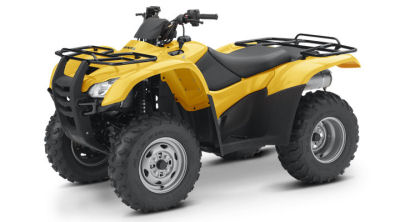

Honda FourTrax Rancher 4x4 ES 2007 specs
Below are some specifications of the Honda FourTrax Rancher 4x4 ES 2007 model
ATV Type : Utility Quad Bikes
Model ID : TRX420FE7
Engine - Engine Detail : 420cc liquid-cooled OHV dry-sump longitudinally mounted single-cylinder four-stroke
- Engine Capacity : 420 cc
- Valve Spec : OHV
- Type : four-stroke
- Cooling : liquid-cooled
- No of Cylinders : longitudinally mounted single-cylinder
- Bore / Stroke : 86.5mm x 71.5mm
- Lubrication : dry-sump
- Ignition : Full transistor with electronic advance, Electric with optional auxiliary recoil
Gearbox - Transmission : Automatic, ESP Five-speed with Reverse
- Final Drive : Direct Front and Rear Driveshaft
Fuel - Fuel System : Keihin 34mm throttle-body fuel-injection system
- Fuel Tank Capacity (Gal) : 3.7 gal.
- Fuel Tank Capacity (Liters) : 14 liters
Dimensions and Weight - Length (Inches) : 80.9 in
- Width (Inches) : 46.1 in
- Height (Inches) : 45.1 in
- Seat Height (Inches) : 32.4 in
- Ground Clearance (Inches) : 6.5 in
- Wheelbase (Inches) : 49.2 in
- Dry Weight (Lbs) : 562 lb
- Length (mm) : 2055mm
- Width (mm) : 1171mm
- Height (mm) : 1146mm
- Seat Height (mm) : 823mm
- Ground Clearance (mm) : 165mm
- Wheelbase (mm) : 1250mm
- Dry Weight (Kg) : 254.92 kg
- Turning Circle : 10.5 feet
Suspension, Brakes and Tires - Suspension - Front : Independent double-wishbone with 6.3 inches travel
- Suspension - Rear : Swingarm with single shock with 6.3 inches travel
- Brakes - Front : Dual hydraulic disc
- Brakes - Rear : Sealed mechanical drum
- Tires - Front : 24 x 8-12
- Tires - Rear : 24 x 10-11
Available Colors - Colors : Olive, Red, Yellow, Camo
Warranty - Warranty Info : 6 months Coverage of defects in materials and workmanship
|
