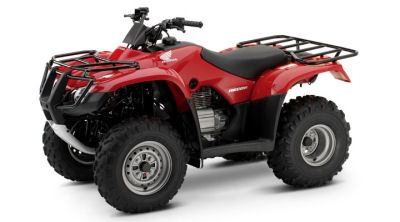

Honda FourTrax Recon 250 2007 specs
Below are some specifications of the Honda FourTrax Recon 250 2007 model
ATV Type : Utility Quad Bikes
Model ID : TRX250TM7
Engine - Engine Detail : 229cc air-cooled OHV longitudinally mounted single-cylinder four-stroke
- Engine Capacity : 229 cc
- Valve Spec : OHV
- Type : four-stroke
- Cooling : air-cooled
- No of Cylinders : longitudinally mounted single-cylinder
- Bore / Stroke : 68.5mm x 62.2mm
- Ignition : CD with electronic advance, Electric with auxiliary recoil
Gearbox - Transmission : Semi Automatic, Five-speed with reverse
- Final Drive : Direct rear drive-shaft
Fuel - Fuel System : 22.0mm carb
- Fuel Tank Capacity (Gal) : 2.4 gal.
- Fuel Tank Capacity (Liters) : 9 liters
Dimensions and Weight - Length (Inches) : 75 in
- Width (Inches) : 40.7 in
- Height (Inches) : 42.1 in
- Seat Height (Inches) : 31.2 in
- Ground Clearance (Inches) : 6 in
- Wheelbase (Inches) : 44.5 in
- Dry Weight (Lbs) : 418 lb
- Length (mm) : 1905mm
- Width (mm) : 1034mm
- Height (mm) : 1069mm
- Seat Height (mm) : 792mm
- Ground Clearance (mm) : 152mm
- Wheelbase (mm) : 1130mm
- Dry Weight (Kg) : 189.6 kg
- Turning Circle : 8.5 feet
Suspension, Brakes and Tires - Suspension - Front : Independent double-wishbone with 5.1-inch travel
- Suspension - Rear : Swingarm with single shock tith 4.9-inch travel
- Brakes - Front : Dual-sealed hydraulic drum
- Brakes - Rear : Sealed mechanical drum
- Tires - Front : 22 x 7-11
- Tires - Rear : 22 x 10-9
Available Colors - Colors : Olive, Red, Yellow
Warranty - Warranty Info : 6 months Transferable, unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
|
