2007 Honda ATV & Quad Bike Specs

Engine Spec

Engine Detail: 675cc liquid-cooled OHV semi-dry-sump longitudinally mounted single-cylinder four-stroke

Engine Capacity (cc / Ci ): 675 cc / 41.2

Engine Valves: OHV

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: four-stroke

Engine Cooling: liquid-cooled

Engine Cylinders: longitudinally mounted single-cylinder

Engine Braking: Standard

Displacement To Weight CC: 1.12

Bore Stroke(mm): 102.0mm x 82.6mm

Bore Stroke(in): 4.02in. x 3.25 in.

Fuel System: Electronic fuel injection with IACV idle control

Fuel Injector Size MM: 40

Fuel Type: Petrol

Lubrication: semi-dry-sump

Ignition: Full-Transistorized type with electronic advance - Electric with auxiliary recoil

Brakes

Brakes Front: Dual hydraulic 180mm disc

Front Brake Diameter (mm / in.): 180 / Unknown

Brakes Rear: Single hydraulic disc

Suspension

Front Suspension: Independent double-wishbone with 6.9-inch travel

Suspension - Front Travel (mm / in.): 175.3 / 6.9

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Independent double-wishbone with 8.0-inch travel

Suspension Rear - Material: Aluminum

Rear Travel (mm / in.): 203.2 / 8

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2113 / 83.2

Width (mm / in.): 1189 / 46.8

Height (mm / in.): 1207 / 47.5

Ground Clearance (mm / in.): 254 / 10

Wheelbase (mm / in.): 1290.3 / 50.8

Dry Weight (Kg / Lbs.): 272.2 / 600

Transmission (Gearbox) and Final Drive

Transmission: Automatic with hydraulic torque converter, three forward gears, reverse, and electronic controls

Final Drive: Direct front and rear drive-shafts with torque-sensitive front differential

Drive line Modes: 2

Primary Drive - Front Wheels: Shaft

Driveline Make: TraxLok

Limited Slip Diff Location: Front

Number Of Speeds: 3

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tires Front: 25 x 8-12 radial

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: 25 x 10-12 radial

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 17 / 4.5

Fuel Tank Reserve (l / gal.): 4.2 / 1.1

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Glove Box / Dashboard Storage: Standard

Seats

Seat Height (mm / in.): 876.3 / 34.5

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Olive, Red, Camo

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Brush Guard: No

CV Boot Cover: Yes

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Power Outlet: Standard

Rear Bumper: Standard

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: Yes

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Turning Circle: 10.8

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Honda

Warranty Info: 6 months Coverage of defects in materials and workmanship

2007 Honda FourTrax Rincon 680 FA ATV Specs South Africa

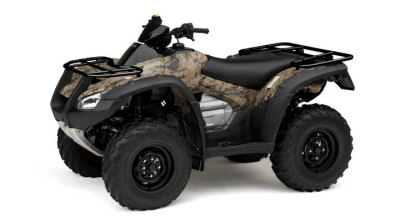

Honda FourTrax Rincon 680 FA 2007
