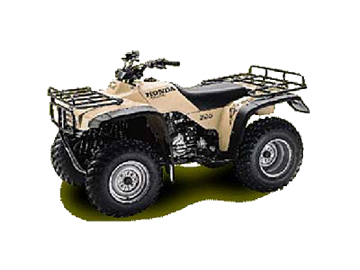

Honda FourTrax TRX300FW 4X4 1999 specs
Below are some specifications of the Honda FourTrax TRX300FW 4X4 1999 model
ATV Type : Utility Quad Bikes
Engine - Engine Detail : 282cc, Air Cooled, single cylinder, 4-Stroke
- Engine Capacity : 282cc
- Type : 4-Stroke
- Cooling : Air-Cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 74mm x 65.5mm
- Ignition : Solid state digital CD with electronic advance
Fuel - Fuel Tank Capacity (Gal) : 3.3 gal.
- Fuel Tank Capacity (Liters) : 12 liters
Dimensions and Weight - Length (Inches) : 75.2 in
- Width (Inches) : 45.6 in
- Height (Inches) : 42.4 in
- Seat Height (Inches) : 30.8 in
- Ground Clearance (Inches) : 6.3 in
- Wheelbase (Inches) : 48.8 in
- Dry Weight (Lbs) : 487.2 lb
- Length (mm) : 1910mm
- Width (mm) : 1158mm
- Height (mm) : 1077mm
- Seat Height (mm) : 782mm
- Ground Clearance (mm) : 160mm
- Wheelbase (mm) : 1240mm
- Dry Weight (Kg) : 221 kg
Suspension, Brakes and Tires - Suspension - Front : Double wishbone, 5.1
- Suspension - Rear : Swingarm with single shock, 5.1
- Brakes - Front : Dual Hydraulic Drum
- Brakes - Rear : Drum
- Tires - Front : 23 x 8-11
- Tires - Rear : 25 x 11-9
Carry Racks - Rack Capacity - Front (Lbs) : 66 lb
- Rack Capacity - Front (Kg) : 30 kg
- Rack Capacity - Rear (Lbs) : 132 lb
- Rack Capacity - Rear (Kg) : 60 kg
Towing Capacity - Towing Capacity (Lbs) : 850 lb
- Towing Capacity (Kg) : 386 kg
|
