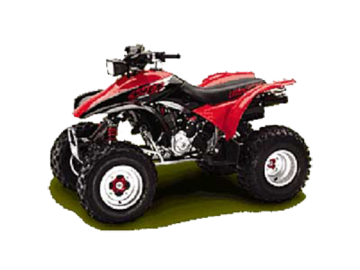

Honda Fourtrax 400EX 1999 specs
Below are some specifications of the Honda Fourtrax 400EX 1999 model
ATV Type : Utility Quad Bikes
Model ID : TRX400EX
Engine - Engine Detail : 397cc, RFVC Air Cooled, dry sump, single cylinder, 4-Stroke
- Engine Capacity : 397cc
- Type : 4-Stroke
- Cooling : Air-Cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 85mm x 70mm
- Lubrication : dry sump
- Ignition : Solid state CD with electronic advance
Fuel - Fuel Tank Capacity (Gal) : 2.6 gal.
- Fuel Tank Capacity (Liters) : 10 liters
Dimensions and Weight - Length (Inches) : 72.2 in
- Width (Inches) : 45.3 in
- Height (Inches) : 43.7 in
- Seat Height (Inches) : 31.9 in
- Ground Clearance (Inches) : 4.3 in
- Wheelbase (Inches) : 48.4 in
- Dry Weight (Lbs) : 374.7 lb
- Length (mm) : 1834mm
- Width (mm) : 1151mm
- Height (mm) : 1110mm
- Seat Height (mm) : 810mm
- Ground Clearance (mm) : 109mm
- Wheelbase (mm) : 1229mm
- Dry Weight (Kg) : 170 kg
Suspension, Brakes and Tires - Suspension - Front : Independent double wishbone with Showa shocks, 5-position spring preload adj., 8.2
- Suspension - Rear : Pro-Link single Showa shock with spring preload adj., 9.1
- Brakes - Front : Dual Hydraulic 174mm discs
- Brakes - Rear : Single 220mm disc
- Tires - Front : 22 x 7-10 knobby Ohtsu radial
- Tires - Rear : 20 x 10-9 knobby Ohtsu radial
Carry Racks - Rack Capacity - Front (Lbs) : 66 lb
- Rack Capacity - Front (Kg) : 30 kg
- Rack Capacity - Rear (Lbs) : 132 lb
- Rack Capacity - Rear (Kg) : 60 kg
Towing Capacity - Towing Capacity (Lbs) : 850 lb
- Towing Capacity (Kg) : 386 kg
|
