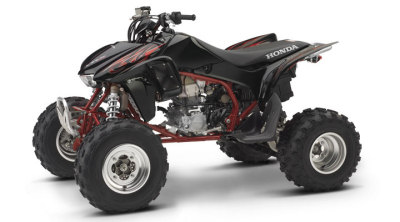

Honda SportTrax TRX450R Electric Start 2007 specs
Below are some specifications of the Honda SportTrax TRX450R Electric Start 2007 model
ATV Type : Racing Quad Bikes
Model ID : TRX450ER7
Engine - Engine Detail : 450cc liquid-cooled single-cylinder four-stroke
- Engine Capacity : 450 cc
- Valve Spec : Unicam - four-valve
- Type : four-stroke
- Cooling : liquid-cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 96.0mm x 62.0mm
- Compression Ratio : 12.0:1
- Ignition : CD with electronic advance
Gearbox - Transmission : Five-speed
- Final Drive : O-ring-sealed chain
Fuel - Fuel System : Keihin 40mm flat slide with throttle position sensor (TPS)
- Fuel Tank Capacity (Gal) : 3.2 gal.
- Fuel Tank Capacity (Liters) : 12 liters
Dimensions and Weight - Length (Inches) : 72.6 in
- Width (Inches) : 46.3 in
- Height (Inches) : 43.1 in
- Seat Height (Inches) : 32.4 in
- Ground Clearance (Inches) : 4.2 in
- Wheelbase (Inches) : 49.2 in
- Dry Weight (Lbs) : 350 lb
- Length (mm) : 1844mm
- Width (mm) : 1176mm
- Height (mm) : 1095mm
- Seat Height (mm) : 823mm
- Ground Clearance (mm) : 107mm
- Wheelbase (mm) : 1250mm
- Dry Weight (Kg) : 158.76 kg
Suspension, Brakes and Tires - Suspension - Front : Independent double-wishbone with Showa shocks, featuring adjustable spring preload, rebound and compression damping; 8.4-inch travel
- Suspension - Rear : Pro-Link with single Showa shock featuring adjustable spring preload, rebound and compression damping; 9.0-inch travel
- Brakes - Front : Dual hydraulic 174.0mm discs with twin-piston calipers
- Brakes - Rear : Single hydraulic 190.0mm disc with single-piston caliper
- Tires - Front : 22 x 7-10 knobby radial
- Tires - Rear : 20 x 10-9 knobby radial
Available Colors - Colors : White, Red, Black/Flame
Warranty - Warranty Info : 6 months Transferable, limited warranty; extended coverage available with a Honda Protection Plan
|
