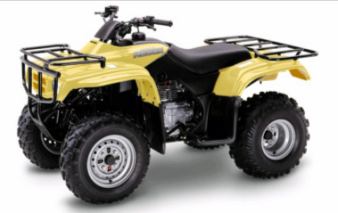

Honda Fourtrax Rancher TRX350FM 4x4 2006 specs
Here are some specifications of the Rancher 350 4x4 ATV.

ENGINE
-
Engine Type:
Longitudinally mounted liquid-cooled four-stroke single
-
Capacity: 329cc
-
Compression ratio:
8.8:1
-
Bore and Stroke:
78.5mm x 68mm
-
Power:
14.3kW at 6500rpm
-
Torque:
23Nm at 5000rpm
-
Valvegear:
Pushrod with two overhead valves per cylinder.
-
Carburetion:
22.0mm
-
Ignition:
CD with electronic advance
-
Starter:
Electric with auxiliary recoil
-
Transmission: Five-speed and reverse constant-mesh
gearbox with final drive
by direct front and rear shafts with torque-sensitive front differential.
DRIVE TRAIN
-
Clutch:
Cable-operated wet multiplate clutch.
-
Transmission:
Five-speed with reverse
-
Driveline: Direct rear drive-shaft
CHASSIS / SUSPENSION / BRAKES
-
Front Suspension:
Independent double wishbone with hydraulic shock absorbers
-
Rear Suspension:
Independent double wishbone with hydraulic shock absorbers
-
Front Brakes: Dual 160mm sealed mechanical drum brakes
-
Rear Brake:
160mm sealed mechanical drum brake
-
Front Tires: 24 x 8-12 tubeless
-
Rear Tires: 24 x 9-11 tubeless
DIMENSIONS
-
Length:
75.0 inches
-
Width:
40.7 inches
-
Height:
42.1 inches
-
Wheelbase:
1246mm
-
Seat Height:
819mm
-
Ground Clearance:
6.0 inches
-
Turning Radius:
8.5 feet
-
Dry Weight:
238kg
-
Fuel Capacity: 13.9 litres
OTHER
-
Available Colors:
Olive, Red, Yellow
-
Model ID:
TRX350TM
-
Price: R45 500.
FACTORY WARRANTY INFORMATION
6 months Transferable, unlimited-mileage limited warranty; extended coverage
available with a Honda Protection Plan.
|
