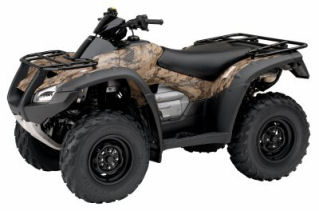

Honda Fourtrax Rincon TRX650FA 4x4 2006 specs
Here are some specifications of the Rincon 680 4x4 ATV.

ENGINE
-
Engine Type: Liquid-cooled longitudinally mounted
semi-dry-sump four-stroke OHV single
-
Displacement: 675.7cm
-
Compression ratio: 10.5:1
-
Bore and Stroke:
102mm x 82.6mm
-
Power:
14.3kW at 6500rpm
-
Torque:
23Nm at 5000rpm
-
Valve Train:
OHV
-
Carburetion:
Single 36mm CV
-
Ignition:
Fully transistorized with electric advance
-
Starter: Electric with auxiliary recoil
DRIVE TRAIN
-
Transmission:
Automatic with hydraolic tourque converter 3-speed, forward, 1-speed reverse;
electrical control
-
Driveline: Direct front and rear driveshafts
with torque-sensative front differential
CHASSIS / SUSPENSION / BRAKES
-
Front Suspension: Independent double-wishbone with hydraulic
shocks; 170mm (6.7") travel
-
Rear Suspension:
Independent double wishbone with hydraulic shock absorbers
-
Front Brakes:
Dual 180mm hydraulic discs
-
Rear Brake:
Sealed mechanical drum
-
Front Tires:
25 x 8-12
-
Rear Tires: 25x 10-12
DIMENSIONS
-
Length:
2 112 mm
-
Width: 1 189 mm
-
Height: 1 207 mm
-
Wheelbase:
1 290 mm
-
Seat Height:
876 mm
-
Ground Clearance:
254 mm
-
Turning Radius:
3.3 m
-
Dry Weight:
272 kg
-
Fuel Capacity: 17 litres, including 3.1 litre reserve
OTHER
-
Available Colors: Red, Camo, Black (Charcoal)
-
Model ID:
TRX650FA
-
Price: R 75 500.
FACTORY WARRANTY INFORMATION
6 months Transferable, unlimited-mileage limited warranty; extended coverage
available with a Honda Protection Plan.
|
