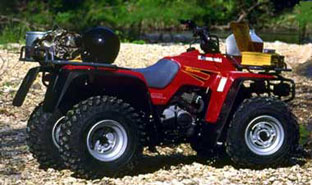

Kawasaki Bayou 300 1999 specs
Below are some specifications of the Kawasaki Bayou 300 1999 model
ATV Type : Utility Quad Bikes
Engine - Engine Detail : 290cc, Air cooled, 4-stroke, SOHC single cylinder
- Engine Capacity : 290cc
- Valve Spec : SOHC
- Type : 4-stroke
- Cooling : Air-Cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 76 mm x 64 mm
- Compression Ratio : 8.6:1
- Ignition : Electronic, maintenance free Electric with recoil backup
Gearbox - Transmission : Automatic centrifugal and automatic wet multi-disc - 5-speed plus reverse
- Final Drive : Shaft
Fuel - Fuel System : Kleihin CVK32
- Fuel Tank Capacity (Gal) : 2.4 gal.
- Fuel Tank Capacity (Liters) : 9.08 liters
Dimensions and Weight - Length (Inches) : 75.2 in
- Width (Inches) : 39.1 in
- Height (Inches) : 0 in
- Seat Height (Inches) : 29.5 in
- Ground Clearance (Inches) : 7.7 in
- Wheelbase (Inches) : 47.6 in
- Dry Weight (Lbs) : 498.3 lb
- Length (mm) : 1910mm
- Width (mm) : 993mm
- Height (mm) : 0mm
- Seat Height (mm) : 749mm
- Ground Clearance (mm) : 196mm
- Wheelbase (mm) : 1209mm
- Dry Weight (Kg) : 226 kg
Suspension, Brakes and Tires - Suspension - Front : Dual A-arms, with shocks, 5-way preload, adj., 4.9 of travel
- Suspension - Rear : Quad-link with two shock absorbers, 5-way preload, adj., 4.7 of travel
- Brakes - Front : Dual Disc
- Brakes - Rear : Dual Drum
- Tires - Front : 22 x 9-10 tubeless
- Tires - Rear : 24 x 11-10 tubeless
Carry Racks - Rack Capacity - Front (Lbs) : 70 lb
- Rack Capacity - Front (Kg) : 31.8 kg
- Rack Capacity - Rear (Lbs) : 140 lb
- Rack Capacity - Rear (Kg) : 63.5 kg
Towing Capacity - Towing Capacity (Lbs) : 700 lb
- Towing Capacity (Kg) : 317.5 kg
|
