Kawasaki Bayou 250 4x2 2006 specs
|
|
Kawasaki Bayou 250 2006 specs

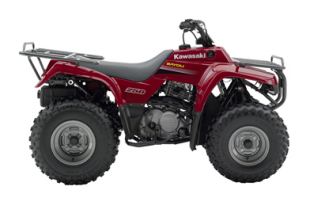

Below are some specifications of the Bayou 250 4x2 ATV.
Engine
-
Type:
Air-cooled, four-stroke, single cylinder
-
Displacement: 228 cc
-
Bore x Stroke:
69.0mm x 61.0mm
-
Compression: Ratio:
8.9:1
-
Carborator:
Mikuni VM24SS
-
Ignition: Solid state with electronic ignition
backup
-
Transmission:
Five-speed-plus reverse with automatic clutch , semi automatic
-
Final Drive: Shaft
Chassis
-
Suspension/Front: Independent Single A-arm
-
Wheel travel/Front:
4.5 in
-
Suspension/Rear: Semi-independent Quad-Link with dual
shocks
-
Wheel travel/Rear:
4.5 in
-
Brakes/Front:
Dual drums
-
Brakes/Rear:
Drum
-
Tires/Front:
AT21x8-9 tubeless
-
Tires/Rear: AT22x10-10 tubeless
-
Frame: Double-cradle, steel
Dimensions
-
L x W:
70.1 in x 40.2 in
-
Seat Height: 28.7 in
-
Wheelbase:
43.9 in
-
Ground Clearance: Center of chassis – 7.5 in., at rear axle –
6.1 in.
-
Fuel Capacity:
2.6 gal
-
Dry Weight: 404 lbs
Other
-
Instrumentation:
Neutral indicator, reverse indicator,Fuel gauge
-
Lighting:
25W x 2
-
Colors:
Hunter Green, Aztec Red
-
Towing capacity: 450
lbs.
-
Rack Capacity / Front:
44 lbs
-
Rack Capacity / Back: 66 lbs
|
|
|
|
|
