Kawasaki Brute Force 750 4x4i 2006 specs
|
|
Kawasaki Brute Force 750 2006 specs

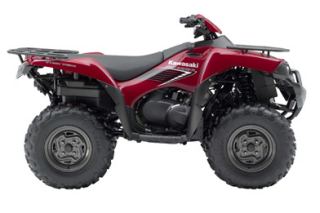

Below are some specifications of the Brute Force 750 4x4 ATV.

Engine
-
Type: 4-stroke, Liquid-cooled, V-twin, 90-degree
-
Valve system:
SOHC, four valves per cylinder
-
Displacement: 749 cc
-
Bore x Stroke:
85mm x 66mm
-
Compression: Ratio:
8.8:1
-
Carborator:
two keihin CVKR-34
-
Ignition:
Digital DC-CDI
-
Starting System:
Electric/recoil
-
Transmission:
Continuously variable belt-drive transmission with high and low range, plus
reverse, and Kawasaki Engine Brake Control
-
Engine Braking:
All Wheel
-
Final Drive:
Selectable four-wheel drive with Variable Front Differential Control, shaft
-
Max Torque: 2.99 kg-m @ 5000 rpm
Chassis
-
Suspension/Front: Dual A-arm
-
Wheel travel/Front:
6.7 in
-
Suspension/Rear: Fully Independent, dual
A-arm
-
Wheel travel/Rear:
7.9 in
-
Brakes/Front: Dual hydraulic discs with 2-piston calipers
-
Brakes/Rear: Sealed, oil-bathed, multi-disc
-
Tires/Front:
AT25x8-12
-
Tires/Rear:
AT25x10-12
-
Frame: Double-cradle, tubular steel
Dimensions
-
L x W x H:
86.3 in x 46.3 in x 49.2 in
-
Seat Height: 36.8 in
-
Wheelbase:
50.5 in
-
Turning Radius:
118"
-
Ground Clearance: 10.6 in
-
Fuel Capacity:
5.4 gal
-
Dry Weight: 604.2 lbs
Other
-
Instrumentation:
Speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4/4x4
indicator, neutral indicator, reverse indicator, low fuel warning light, low
oil warning light
-
Lighting: Four 40W headlights, 5W taillight, 21W stoplight
-
Colors:
Woodsman Green, Aztec Red, Galaxy Silver
-
Towing capacity:
1,250 lbs.
-
Rack Capacity / Front:
88 lbs
-
Rack Capacity / Rear: 176 lbs
|
|
|
|
|
