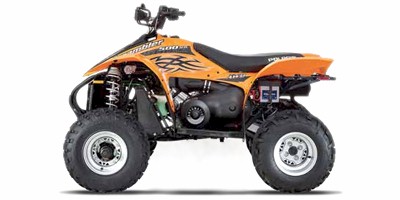

Polaris Scrambler 500 2006 specs
Below are some specifications of the Polaris Scrambler 500 2006 model
ATV Type : Racing Quad Bikes
Engine - Engine Capacity : 499 cc
- Type : four-stroke
- Cooling : liquid-cooled
- No of Cylinders : Single
Gearbox - Transmission : F/N/R
- Final Drive : Rear: Concentric chain Front: Shaft
Fuel - Fuel Tank Capacity (Gal) : 3.5 gal.
Dimensions and Weight - Length (Inches) : 75 in
- Width (Inches) : 46 in
- Height (Inches) : 47 in
- Seat Height (Inches) : 34 in
- Ground Clearance (Inches) : 5.5 in
- Wheelbase (Inches) : 48 in
- Dry Weight (Lbs) : 571 lb
- Length (mm) : 1905mm
- Width (mm) : 1168mm
- Height (mm) : 1194mm
- Seat Height (mm) : 864mm
- Ground Clearance (mm) : 140mm
- Wheelbase (mm) : 1219mm
- Dry Weight (Kg) : 259 kg
- Turning Circle : Inside tire: 83 in. (210.8 cm)
Suspension, Brakes and Tires - Suspension - Front : MacPherson strut with 8.2 in. travel (20.8 cm)
- Suspension - Rear : Progressive-rate swing arm with 10.5 in. travel (26.7 cm)
- Brakes - Front : Single-lever hydraulic disc with hydraulic rear foot brake
- Brakes - Rear : Single-lever hydraulic disc with hydraulic rear foot brake
- Tires - Front : 23 x 7-10
- Tires - Rear : 22 x 11-10
|
