2025 Polaris Sportsman 570 ATV Specs South Africa

2025 Polaris Sportsman 570 specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

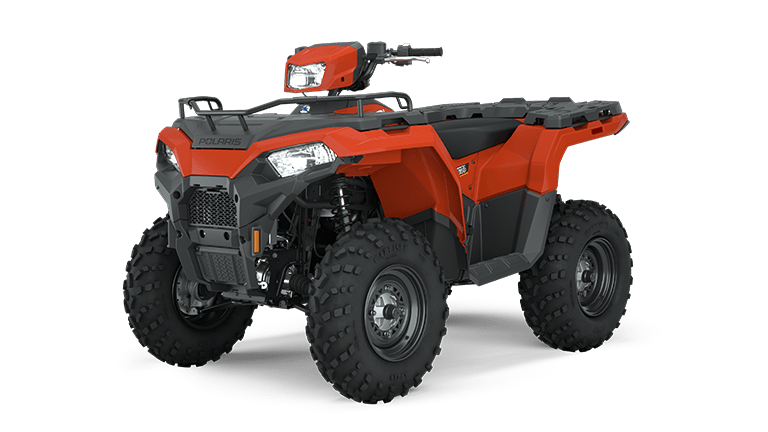

Polaris Sportsman 570

Polaris Sportsman 570 2025

Make

Polaris

Model

Sportsman

Year

2025

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 567 / 34.6

Engine Valves: DOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid-cooled

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 92.0mm x 85.0mm

Bore Stroke(in): 3.62in. x 3.35in.

Compression Ratio: 11.0:1

Fuel System: EFI

Fuel Type: Petrol

Ignition: CDI Electronic

Brakes

Brakes Front: Single lever 3-wheel hydraulic disc

Front Brake Diameter (mm / in.): 190 / 7.5

Brakes Rear: Hydraulic rear foot brake

Suspension

Front Suspension: MacPherson strut with 8.2 in travel

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 208 / 8.2

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Dual A-arm IRS with 9.5 in travel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 241 / 9.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Dimensions and Weight

Length (mm / in.): 2108 / 83.0

Width (mm / in.): 1219 / 48.0

Height (mm / in.): 1194 / 47.0

Ground Clearance (mm / in.): 292 / 11.5

Wheelbase (mm / in.): 1283 / 50.5

Dry Weight (Kg / Lbs.): 336 / 741

Transmission (Gearbox) and Final Drive

Transmission: Automatic PVT P R N L H

Transmission Make: Polaris

Final Drive: Shaft

Drive line Modes: 2WD 4WD Lock

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: On-Demand True AWD

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tube / Tubeless: Tubeless

Tires Front: 25 x 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: 25 x 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 17.0 / 4.5

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 850 / 33.5

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 612 / 1350

Instrumentation

Digital Instrumentation: Standard

Trip Computer: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: Standard

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: Yes

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 16

Parent Company: Polaris

Warranty Info: 12-month limited warranty
