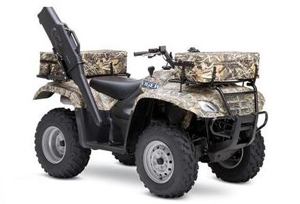

Suzuki Eiger 400 4x4 Hunter X Hunter Edition 2007 specs
Below are some specifications of the Suzuki Eiger 400 4x4 Hunter X Hunter Edition 2007 model
ATV Type : Utility Quad Bikes
Model ID : LTA400FHK7
Engine - Engine Detail : 376cc, SOHC, four-stroke, single cylinder, air/oil-cooled
- Engine Capacity : 376cc
- Valve Spec : SOHC (Single Overhead Cam)
- Type : four-stroke
- Cooling : air/oil-cooled
- No of Cylinders : single cylinder
- Bore / Stroke : 82.0 x 71.2mm
- Compression Ratio : 9.0:1
- Lubrication : Wet Sump
- Ignition : CDI (Electric)
Gearbox - Transmission : V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD front differential
- Final Drive : Shaft drive
Fuel - Fuel System : KeihinT CVK32
- Fuel Tank Capacity (Gal) : 4.0 gal.
- Fuel Tank Capacity (Liters) : 15.0 liters
Dimensions and Weight - Length (Inches) : 85.6 in
- Width (Inches) : 45.1 in
- Height (Inches) : 47.2 in
- Seat Height (Inches) : 32.7 in
- Ground Clearance (Inches) : 9.3 in
- Wheelbase (Inches) : 50 in
- Dry Weight (Lbs) : 590 lb
- Length (mm) : 2175mm
- Width (mm) : 1145mm
- Height (mm) : 1200mm
- Seat Height (mm) : 830mm
- Ground Clearance (mm) : 235mm
- Wheelbase (mm) : 1270mm
- Dry Weight (Kg) : 268 kg
Suspension, Brakes and Tires - Suspension - Front : Independent, double A-arm, oil-damped
- Suspension - Rear : Swingarm-type, oil-damped
- Brakes - Front : Dual hydraulic discs
- Brakes - Rear : Single mechanical drum
- Tires - Front : AT 25 x 8-12
- Tires - Rear : AT 25 x 10-12
Available Colors - Colors : Advantage® Max-4 HDT (Camo)
|
