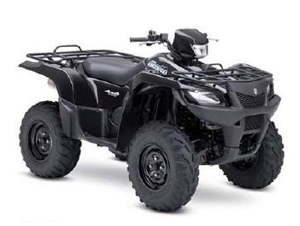

Suzuki King Quad 700 4x4 Automatic 2007 specs
Below are some specifications of the Suzuki King Quad 700 4x4 Automatic 2007 model
ATV Type : Utility Quad Bikes
Model ID : LTA700XK7
Engine - Engine Detail : 695cc, DOHC, four-stroke, single cylinder, liquid-cooled
- Engine Capacity : 695cc
- Valve Spec : DOHC
- Type : four-stroke
- Cooling : liquid-cooled
- No of Cylinders : single cylinder
- Bore / Stroke : 102.0 X 85.0mm
- Compression Ratio : 10.0:1
- Lubrication : Wet sump
- Ignition : CDI (Electric)
Gearbox - Transmission : V-belt CVT automatic with high/low range sub-transmission, 2WD/4WD/4WD front differential lock
- Final Drive : Shaft drive
Fuel - Fuel System : Fuel Injection
- Fuel Tank Capacity (Gal) : 4.6 gal.
- Fuel Tank Capacity (Liters) : 17.5 liters
Dimensions and Weight - Length (Inches) : 83.5 in
- Width (Inches) : 47.6 in
- Height (Inches) : 48 in
- Seat Height (Inches) : 33.9 in
- Ground Clearance (Inches) : 10.2 in
- Wheelbase (Inches) : 50.4 in
- Dry Weight (Lbs) : 602 lb
- Length (mm) : 2120mm
- Width (mm) : 1210mm
- Height (mm) : 1220mm
- Seat Height (mm) : 860mm
- Ground Clearance (mm) : 260mm
- Wheelbase (mm) : 1280mm
- Dry Weight (Kg) : 272 kg
Suspension, Brakes and Tires - Suspension - Front : Independent, double A-arm, oil-damped, five preload settings
- Suspension - Rear : Independent, double A-Arm oil-damped, five preload settings
- Brakes - Front : Dual hydraulic disc
- Brakes - Rear : Sealed hydraulic disc
- Tires - Front : AT 25 x 8-12
- Tires - Rear : AT 25 x 10-12
Available Colors - Colors : Black, Green, Red
|
