2020 Suzuki KingQuad Suzuki KingQuad 400 ASi SE+ ATV Specs South Africa

2020 Suzuki KingQuad Suzuki KingQuad 400 ASi SE+ specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

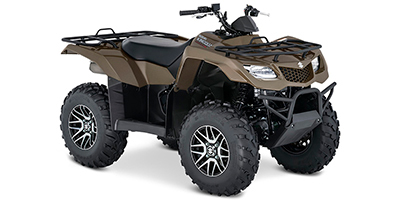

Suzuki KingQuad 400 ASi SE+

Suzuki KingQuad 400 ASi SE+ 2020

Make

Suzuki

Model

KingQuad

Year

2020

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 376 / 22.94

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Air / Oil

Engine Cylinders: Single-Cylinder

Engine Braking: Engine Braking System

Bore Stroke(mm): 82mm x 71.2mm

Bore Stroke(in): 3.23in. x 2.81in.

Compression Ratio: 9:1

Fuel System: Fuel Injected

Fuel Type: Petrol

Ignition: Electric

Brakes

Brakes Front: Dual Hydraulic Disc

Front Brake Diameter (mm / in.): 190 / 7.5

Brakes Rear: Drum

Suspension

Front Suspension: Independent Double A-Arm

Suspension - Front Travel (mm / in.): 170 / 6.7

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

A-Arm Skid Plate (Rear): No

Rear Travel (mm / in.): 170 / 6.7

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2060 / 81.12

Width (mm / in.): 1146 / 45.1

Height (mm / in.): 1219 / 48

Ground Clearance (mm / in.): 249 / 9.8

Wheelbase (mm / in.): 1270 / 50

Wet Weight (Lbs. / Kg): 628 / 285

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Transmission Make: Quadmatic

Final Drive: Selectable 4X2 / 4X4

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Carlisle

Tube / Tubeless: Tubeless

Tires Front: Carlisle AT 25 X 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: Carlisle AT 25 X 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 16 / 4.2

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Underseat Storage: Standard

Seats

Seat Height (mm / in.): 841 / 33.1

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: Yes

CV Boot Cover: No

Floor Board Location: Driver

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Suzuki

Warranty Info: 12 Limited
