2025 Suzuki KingQuad 400FSi ATV Specs South Africa

2025 Suzuki KingQuad 400FSi specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

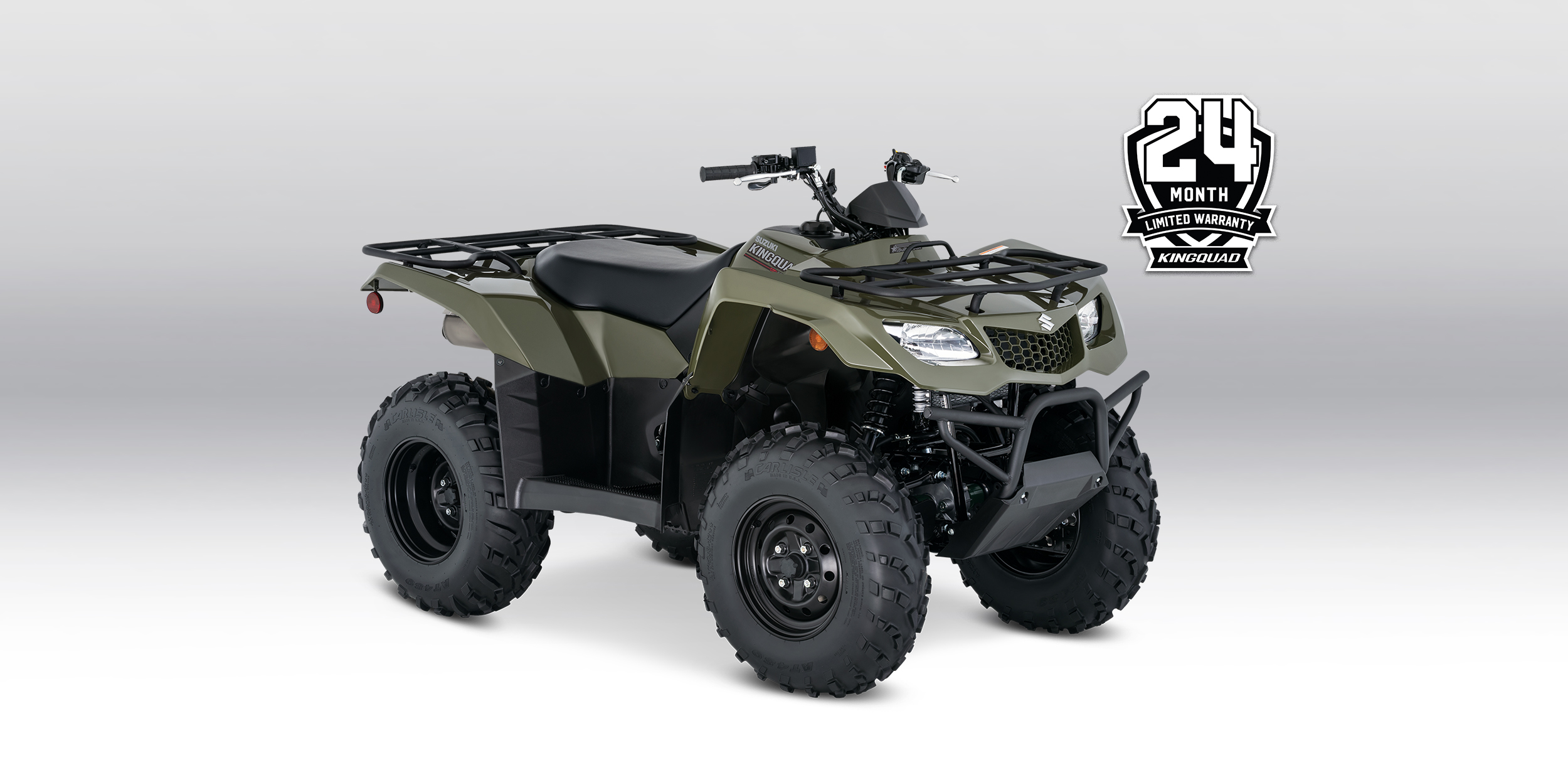

Suzuki KingQuad 400FSi

Suzuki KingQuad 400FSi 2025

Make

Suzuki

Model

KingQuad

Year

2025

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 376 / 22.9

Engine Valves: OHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Air-cooled

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 82.0mm x 71.2mm

Bore Stroke(in): 3.23in. x 2.81in.

Compression Ratio: 9.0:1

Fuel System: Fuel Injected

Fuel Type: Petrol

Ignition: Electric

Brakes

Brakes Front: Dual Hydraulic Disc

Front Brake Diameter (mm / in.): 200 / 7.9

Brakes Rear: Sealed Oil Bath Multi-Disc

Suspension

Front Suspension: Independent Double A-Arm

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 170 / 6.7

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm Type Coil Spring Oil Damped

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: Yes

Rear Travel (mm / in.): 170 / 6.7

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Dimensions and Weight

Length (mm / in.): 2060 / 81.1

Width (mm / in.): 1145 / 45.1

Height (mm / in.): 1220 / 48.0

Ground Clearance (mm / in.): 250 / 9.8

Wheelbase (mm / in.): 1270 / 50.0

Dry Weight (Kg / Lbs.): 279 / 615

Transmission (Gearbox) and Final Drive

Transmission: 5-speed manual with high/low-range and reverse

Transmission Make: Suzuki

Final Drive: Selectable 4X2 / 4X4

Drive line Modes: 2WD 4WD

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Diff Lock Location: NULL

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Carlisle

Tube / Tubeless: Tubeless

Tires Front: Carlisle AT 25 X 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: Carlisle AT 25 X 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 16.0 / 4.2

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 840 / 33.1

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 600 / 1323

Instrumentation

Digital Instrumentation: Standard

Trip Computer: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: Standard

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: Yes

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Suzuki

Warranty Info: 24-month limited warranty
