2006 Suzuki ATV & Quad Bike Specs

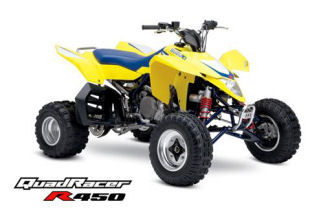

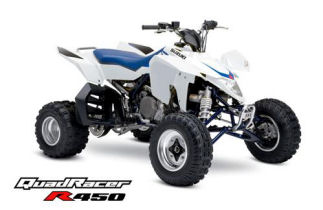

Suzuki QuadRacer R450 2006

Make

Suzuki

Model

QuadRacer

Year

2006

Type

Racing Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 450cc, 4-stroke, single cylinder, liquid-cooled, DOHC, 4-valve

Engine Capacity (cc / Ci ): 450cc / 27.5

Engine Valves: DOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: four-stroke

Engine Cooling: liquid-cooled

Engine Cylinders: single-cylinder

Displacement To Weight CC: 1.22

Bore Stroke(mm): 95.5 x 62.8mm

Bore Stroke(in): 3.76in. x 2.47 in.

Compression Ratio: 11.7:1

Fuel System: Fuel Injection

Fuel Injector Size MM: 42

Fuel Type: Petrol

Lubrication: Dry sump

Ignition: CDI (Electric)

Brakes

Brakes Front: Dual hydraulic discs

Front Brake Diameter (mm / in.): 160 / 6.3

Brakes Rear: Single hydraulic disc

Rear Brake Diameter (mm / in.): 190 / 7.5

Suspension

Front Suspension: Independent, double A-arm, fully adjustable preload, compression & rebound damping with 10.6 inches of travel

Front Suspension - Size (in/mm): 1.6 / 40

A-Arm Skid Plate (Front): No

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: Yes

Suspension Rear: Linkage-type, fully adjustable spring preload, rebound and high and low speed compression damping with 11.4 inches of travel

Suspension Rear - Size (in/mm): 2 / 50

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 290 / 11.4

Rear Adjustable Rebound Damping: Yes

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1845 / 72.6

Width (mm / in.): 1245 / 49.0

Height (mm / in.): 1085 / 42.7

Ground Clearance (mm / in.): 240 / 9.4

Wheelbase (mm / in.): 1285 / 50.6

Dry Weight (Kg / Lbs.): 167 / 368

Transmission (Gearbox) and Final Drive

Transmission: 5-speed constant mesh

Final Drive: Chain

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Number Of Speeds: 5

Reverse: No

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: AT20 x 7 R10

Front Tire Diameter (in): 20

Front Tire Width (in): 7

Front Rim Diameter (in): 10

Tires Rear: AT18 x 10 R8

Rear Tire Diameter (in): 18

Rear Tire Width (in): 10

Rear Rim Diameter (in): 18

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 10 / 2.6

Seats

Seat Height (mm / in.): 780 / 30.7

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Yellow, White

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Decal Kit: Standard

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Suzuki
