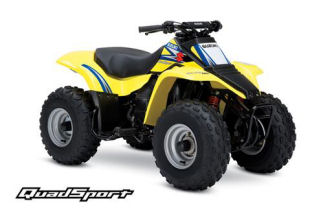

Suzuki QuadSport 80 Automatic 2006 specs
Below are some specifications of the Suzuki QuadSport 80 Automatic 2006 model

ATV Type : Kids Quad Bikes
Model ID : LT80K6
Engine - Engine Detail : 82cc, forced-air-cooled, two-stroke, single cylinder
- Engine Capacity : 82cc
- Valve Spec : SOHC (Single overhead Cam)
- Type : two-stroke
- Cooling : forced-air-cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 50.0mm x 42.0mm
- Compression Ratio : 7.4:1
- Lubrication : Oil injection
- Ignition : CDI (Electic)
Gearbox - Transmission : Variable-speed, automatic clutch
- Final Drive : #520 chain
Fuel - Fuel System : Mikuni VM16SH
- Fuel Tank Capacity (Gal) : 1.6
- Fuel Tank Capacity (Liters) : 6
Dimensions and Weight - Length (Inches) : 55.9
- Width (Inches) : 31.7
- Height (Inches) : 34.3
- Seat Height (Inches) : 25.4
- Ground Clearance (Inches) : 4.3
- Wheelbase (Inches) : 37
- Dry Weight (Lbs) : 220
- Length (mm) : 1420
- Width (mm) : 805
- Height (mm) : 870
- Seat Height (mm) : 645
- Ground Clearance (mm) : 110
- Wheelbase (mm) : 940
- Dry Weight (Kg) : 100
Suspension, Brakes and Tires - Suspension - Front : Independent, single A-arm, oil-damped
- Suspension - Rear : Unit swing suspension, oil-damped
- Brakes - Front : Dual mechanical drum
- Brakes - Rear : Single mechanical drum
- Tires - Front : AT 19 x 7-8
- Tires - Rear : AT 19 x 7-8

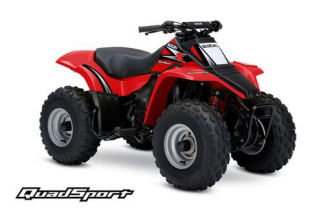

Available Colors - Colors : Yellow/Black, Red/Black
|
