2006 Suzuki ATV & Quad Bike Specs

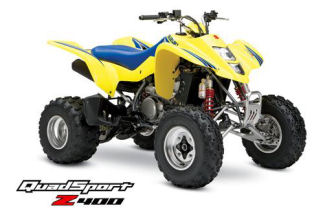

Suzuki QuadSport Z400 2006

Make

Suzuki

Model

QuadSport

Year

2006

Type

Racing Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 398cc, 4-stroke, single cylinder, liquid-cooled, DOHC, 4-valve, TSCC®

Engine Capacity (cc / Ci ): 398cc / 24.3

Engine Valves: DOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: four-stroke

Engine Cooling: liquid-cooled

Engine Cylinders: single-cylinder

Displacement To Weight CC: 1.07

Bore Stroke(mm): 90.0 x 62.6mm

Bore Stroke(in): 3.55in. x 2.47 in.

Compression Ratio: 11.3:1

Fuel System: Mikuni BSR37 with TPS

Fuel System Brand: Mikuni

Carburetor Size MM: 36

Carborator Count: 1

Fuel Type: Petrol

Lubrication: Dry sump

Ignition: Digital/transistorized

Brakes

Brakes Front: Dual hydraulic discs

Front Brake Diameter (mm / in.): 175.3 / 6.9

Brakes Rear: Single hydraulic disc

Rear Brake Diameter (mm / in.): 218.4 / 8.6

Suspension

Front Suspension: Independent, double A-arm, fully adjustable preload, compression & rebound damping, 8.5 inches of travel

Suspension - Front Travel (mm / in.): 215.9 / 8.5

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: Yes

Suspension Rear: Linkage-type, gas/oil damped, fully adjustable spring preload, adjustable compression and rebound damping, 9.1 inches of travel

Suspension Rear - Material: Aluminum

Rear Travel (mm / in.): 231.1 / 9.1

Rear Adjustable Rebound Damping: Yes

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1830 / 72.0

Width (mm / in.): 1165 / 45.9

Height (mm / in.): 1160 / 45.7

Ground Clearance (mm / in.): 265 / 10.4

Wheelbase (mm / in.): 1245 / 49

Dry Weight (Kg / Lbs.): 169 / 372

Transmission (Gearbox) and Final Drive

Transmission: 5-speed, with reverse

Final Drive: # 520 chain

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Number Of Speeds: 5

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: AT 22 x 7-10

Front Tire Diameter (in): 22

Front Tire Width (in): 7

Front Rim Diameter (in): 10

Tires Rear: AT 20 x 10-9

Rear Tire Diameter (in): 20

Rear Tire Width (in): 10

Rear Rim Diameter (in): 9

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 10 / 2.6

Seats

Seat Height (mm / in.): 810 / 31.9

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

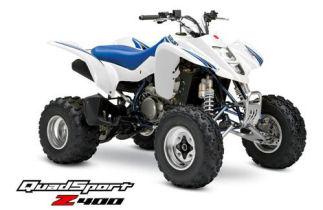

Colors: Yellow, White

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Decal Kit: Standard

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Suzuki
