2008 Suzuki QuadSport Z50 ATV Specs South Africa

2008 Suzuki QuadSport Z50 specs for South Africa:Kids Quad Bikes. Prices, reviews, where to buy.

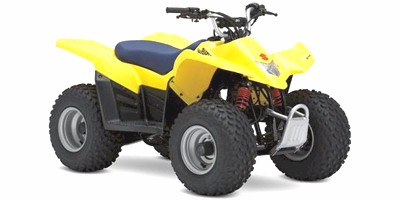

Suzuki QuadSport Z50

Suzuki QuadSport Z50 2008

Make

Suzuki

Model

QuadSport

Year

2008

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 4-stroke, 1-cylinder

Engine Capacity (cc / Ci ): 49cc / 2.99

Engine Valves: SOHC

Engine Type: 4-stroke

Engine Cooling: Air / Oil-Cooled

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.29

Bore Stroke(mm): 36mm x 48.6mm

Bore Stroke(in): 1.42in. x 1.91in.

Compression Ratio: 8.4:1

Fuel System: Carburetor

Fuel System Brand: Mikuni

Carburetor Size MM: 13

Carborator Count: 1

Fuel Type: Petrol

Lubrication: Wet sump

Ignition: CDI

Kill Switch Tether Cord: Standard

Speed Governor: Yes

Brakes

Brakes Front: Mechanical drum

Brakes Rear: Mechanical drum

Suspension

Front Suspension: Single A-arm, oil-damped, coil spring

A-Arm Skid Plate (Front): No

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swing arm, oil-damped, coil spring

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1270 / 50

Width (mm / in.): 770 / 30.3

Height (mm / in.): 765 / 30.1

Ground Clearance (mm / in.): 119 / 4.7

Wheelbase (mm / in.): 830 / 32.7

Dry Weight (Kg / Lbs.): 76 / 167

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: Chain 2x4

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubeless

Tires Front: AT 16 x 8-7

Front Tire Diameter (in): 16

Front Tire Width (in): 8

Front Rim Diameter (in): 7

Tires Rear: AT 16 x 8-7

Rear Tire Diameter (in): 16

Rear Tire Width (in): 8

Rear Rim Diameter (in): 7

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 3 / 0.7

Seats

Seat Height (mm / in.): 536 / 21.1

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Decal Kit: Standard

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Handlebar Pads: Standard

Light Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 6

Parent Company: Suzuki
