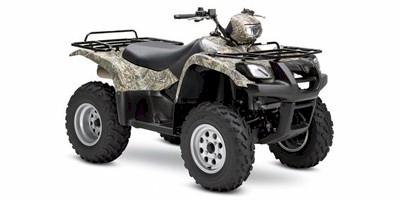

Suzuki Vinson 500 4X4 Semi-Automatic Camouflage Edition

Suzuki Vinson 500 4X4 Semi-Automatic Camouflage Edition 2006

Make

Suzuki

Model

Vinson

Year

2006

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 493 / 30.08

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.82

Bore Stroke(mm): 87.5mm x 82mm

Bore Stroke(in): 3.45in. x 3.23in.

Compression Ratio: 10.2:1

Fuel System: Carburetor

Fuel System Brand: Keihin

Carburetor Size MM: 36

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Pull

Brakes

Brakes Front: Dual Hydraulic Disc

Front Brake Diameter (mm / in.): 190 / 7.5

Brakes Rear: Hydraulic Disc

Rear Brake Diameter (mm / in.): 216 / 8.5

Suspension

Front Suspension: Independent Double A-Arm

Suspension - Front Travel (mm / in.): 180 / 7.1

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

A-Arm Skid Plate (Rear): No

Rear Travel (mm / in.): 201 / 7.9

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Dimensions and Weight

Length (mm / in.): 2097 / 82.56

Width (mm / in.): 1171 / 46.1

Height (mm / in.): 1234 / 48.6

Ground Clearance (mm / in.): 249 / 9.8

Wheelbase (mm / in.): 1270 / 50

Dry Weight (Kg / Lbs.): 274 / 604

Transmission (Gearbox) and Final Drive

Transmission: Manual / Automatic Clutch

Final Drive: Selectable 4X2 / 4X4

Drive line Modes: 2

Primary Drive Engine / Transmission: Gear

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Hi / Low Range: Yes

Number Of Speeds: 5

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tires Front: AT 25 X 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: AT 25 X 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 19 / 5

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front and Rear

Storage Capacity (Cu. ft): 0.26

Storage Capacity (gal): 1.98

Storage Capacity (l): 7.50

Seats

Seat Height (mm / in.): 861 / 33.9

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Standard

Instrumentation

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Other Lights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Power Outlet: Standard

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Suzuki
