2006 Suzuki ATV & Quad Bike Specs

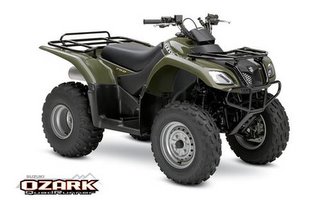

Suzuki Ozark 250 4x2 Semi-Automatic LTF250K 2006

Make

Suzuki

Model

Ozark

Year

2006

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 246cc, 4-stroke, single-cylinder, air-cooled, SOHC, 2-valve, TSCC®

Engine Capacity (cc / Ci ): 246cc / 15

Engine Valves: SOHC (Single Overhead Cam)

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: four-stroke

Engine Cooling: air-cooled

Engine Cylinders: single-cylinder

Displacement To Weight CC: 0.61

Bore Stroke(mm): 66.0 mm x 72 mm

Bore Stroke(in): 2.6in. x 2.84 in.

Compression Ratio: 9.2:1

Fuel System: Mikuni BS29

Fuel System Brand: Mikuni

Carburetor Size MM: 29

Carborator Count: 1

Fuel Type: Petrol

Lubrication: Wet sump

Ignition: Digital/transistorized

Brakes

Brakes Front: Dual hydraulic discs

Front Brake Diameter (mm / in.): 160 / 6.3

Brakes Rear: Mechanical Drum

Suspension

Front Suspension: Independent, double A-arm, oil-damped, 5.5 inches of travel

Suspension - Front Travel (mm / in.): 139.7 / 5.5

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm-type, oil-damped, 5.5 inches of travel

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 139.7 / 5.5

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Dimensions and Weight

Length (mm / in.): 1800 / 70.9

Width (mm / in.): 1045 / 41.9

Height (mm / in.): 1070 / 42.1

Ground Clearance (mm / in.): 210 / 8.3

Wheelbase (mm / in.): 1140 / 44.9

Dry Weight (Kg / Lbs.): 183 / 403

Transmission (Gearbox) and Final Drive

Transmission: 5-speed with reverse, automatic clutch, 2WD

Final Drive: Shaft drive

Drive line Modes: 1

Primary Drive - Rear Wheels: Shaft

Hi / Low Range: No

Number Of Speeds: 5

Reverse: Yes

Tires and Rims

Tire Make: Dunlop

Tires Front: AT 22 x 7-11

Front Tire Diameter (in): 22

Front Tire Width (in): 7

Front Rim Diameter (in): 11

Tires Rear: AT 22 x 10-9

Rear Tire Diameter (in): 22

Rear Tire Width (in): 10

Rear Rim Diameter (in): 9

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 10.6 / 2.8

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Underseat Storage: Standard

Seats

Seat Height (mm / in.): 785 / 30.9

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Towing Capacity (Kg / Lbs.): 330.2 / 728

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Green, Red, Black

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: Yes

Floor Board Location: Driver

Foot Peg Location: Driver

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Suzuki
