2006 Yamaha ATV & Quad Bike Specs

Engine Spec

Engine Detail: 230cc, 4-Stroke Single, Air Cooled, SOHC

Engine Capacity (cc / Ci ): 230 cc / 14

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Air Cooled

Engine Cylinders: Single

Engine Braking: Rear Wheel

Displacement To Weight CC: 0.5

Bore Stroke(mm): 71 mm x 58 mm

Bore Stroke(in): 2.8in. x 2.29in.

Compression Ratio: 8.7:1

Fuel System: Mikuni 33mm BSR

Fuel System Brand: Mikuni

Carburetor Size MM: 33

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric DC - CDI with Auxiliary Pull

Speed Governor: No

Brakes

Brakes Front: Dual Hydraulic Disc

Brakes Rear: Fully Sealed Drum

Suspension

Front Suspension: MacPherson Strut, 4.9 in travel

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 124.5 / 4.9

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm, 5.3 in travel with 5-way Preload Adjustment

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Rear Travel (mm / in.): 134.6 / 5.3

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1915 / 75.4

Width (mm / in.): 1039 / 40.9

Height (mm / in.): 1118 / 44.0

Ground Clearance (mm / in.): 149.9 / 5.9

Wheelbase (mm / in.): 1170.9 / 46.1

Dry Weight (Kg / Lbs.): 207.3 / 457

Transmission (Gearbox) and Final Drive

Transmission: 5-Speed Automatic Clutch with Reverse

Final Drive: 2WD Shaft Drive

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Shaft

Hi / Low Range: No

Number Of Speeds: 5

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tires Front: AT22 x 7-10

Front Tire Diameter (in): 22

Front Tire Width (in): 7

Front Rim Diameter (in): 10

Tires Rear: AT22 x 10-10

Rear Tire Diameter (in): 22

Rear Tire Width (in): 10

Rear Rim Diameter (in): 10

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 12.1 / 3.2

Racks and Payload

Rack Capacity Front (Kg / Lbs.): Unknown / 66

Rack Capacity Rear (Kg / Lbs.): Unknown / 99

Storage

Storage Capacity (Kg / Lbs.): 29.9 / 66

Seats

Seat Height (mm / in.): 779.8 / 30.7

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Standard

Towing Capacity (Kg / Lbs.): 330.2 / 728

Lighting

Lighting: Dual 30W Krypton Multi-reflector Headlights and 21/5W Brake light

Headlights: Standard

Halogen Headlights: Standard

Colours

Colors: Hunter Green, Steel Blue, Red

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Foot Pegs: Standard

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Hand Grips: Standard

Hand Guards: No

Handlebar Pads: Standard

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Turning Circle: 114 in

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Yamaha

Warranty Info: 6 Month (Limited Factory Warranty)

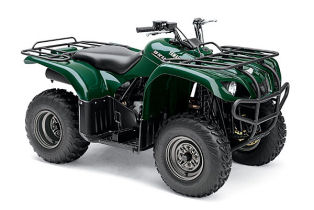

2006 Yamaha Bruin 250 4x2 ATV Specs South Africa

Yamaha Bruin 250 4x2 2006
