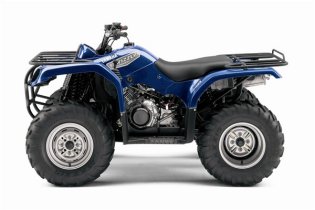

Yamaha Grizzly 350 4x2 Automatic 2007 specs
Below are some specifications of the Yamaha Grizzly 350 4x2 Automatic 2007 model

ATV Type : Utility Quad Bikes
Engine - Engine Detail : 348cc air-/oil-cooled w/fan, SOHC 4-stroke single
- Engine Capacity : 348 cc
- Valve Spec : SOHC
- Type : 4-stroke
- Cooling : air-/oil-cooled w/fan
- No of Cylinders : single-cylinder
- Bore / Stroke : 83 mm x 64.5 mm
- Compression Ratio : 9.2:1
- Ignition : Electric w/auxiliary pull - DC-CDI
Gearbox - Transmission : Yamaha Ultramatic® V-belt/F, N, R
- Final Drive : 2WD; shaft
Fuel - Fuel System : Mikuni 33mm BSR
- Fuel Tank Capacity (Gal) : 3.8
- Fuel Tank Capacity (Liters) : 14.4
Dimensions and Weight - Length (Inches) : 78.1
- Width (Inches) : 42.7
- Height (Inches) : 44.1
- Seat Height (Inches) : 32.6
- Ground Clearance (Inches) : 9.7
- Wheelbase (Inches) : 48.5
- Dry Weight (Lbs) : 507
- Length (mm) : 1984
- Width (mm) : 1085
- Height (mm) : 1120
- Seat Height (mm) : 828
- Ground Clearance (mm) : 246
- Wheelbase (mm) : 1232
- Dry Weight (Kg) : 230
- Turning Circle : 118 in
Suspension, Brakes and Tires - Engine Braking : Rear wheel
- Suspension - Front : Independent double wishbone, 6.3 in travel w/5-way preload adjustment
- Suspension - Rear : Swingarm, 7.1in travel w/5-way preload adjustment
- Brakes - Front : Dual hydraulic discs
- Brakes - Rear : Fully sealed drum
- Tires - Front : AT25x8-12
- Tires - Rear : AT25x10-12
Carry Racks - Rack Capacity - Front (Lbs) : 88
- Rack Capacity - Rear (Lbs) : 176
Towing Capacity - Towing Capacity (Lbs) : 1102
Insrumentation and Lighting - Lighting : Dual 30W Krypton multireflector headlights & 21/5W brake light
Available Colors - Colors : Hunter Green, Steel Blue, Red
|
