2007 Yamaha Grizzly 350 4x4 Automatic ATV Specs South Africa

2007 Yamaha Grizzly 350 4x4 Automatic specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

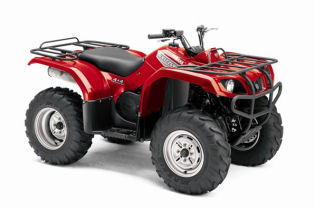

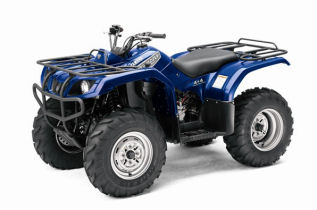

Yamaha Grizzly 350 4x4 Automatic

Yamaha Grizzly 350 4x4 Automatic 2007

Make

Yamaha

Model

Grizzly

Year

2007

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison
Engine Spec
Engine Detail: 348cc air-/oil-cooled w/fan, SOHC 4-stroke single
Engine Capacity (cc / Ci ): 348 cc / Unknown
Engine Valves: SOHC
Engine Type: 4-stroke
Engine Cooling: air-/oil-cooled w/fan
Engine Cylinders: single-cylinder
Engine Braking: Front & rear wheel
Bore Stroke(mm): 83 mm x 64.5 mm
Compression Ratio: 9.2:1
Fuel System: Mikuni 33mm BSR
Ignition: Electric w/auxiliary pull - DC - CDI
Brakes
Brakes Front: Dual hydraulic discs
Brakes Rear: Fully sealed drum
Suspension
Front Suspension: Independent double wishbone, 6.3 in travel w/5-way preload adjustment
Suspension Rear: Swingarm, 7.1in travel w/5-way preload adjustment
Dimensions and Weight
Length (mm / in.): 1984 / 78.1
Width (mm / in.): 1085 / 42.7
Height (mm / in.): 1120 / 44.1
Ground Clearance (mm / in.): 246 / 9.7
Wheelbase (mm / in.): 1232 / 48.5
Dry Weight (Kg / Lbs.): 243 / 536
Transmission (Gearbox) and Final Drive
Transmission: Yamaha Ultramatic® V-belt/F, N, R
Final Drive: Yamaha On-Command® push button 2WD, 4WD; shaft
Tires and Rims
Tires Front: AT25x8-12
Tires Rear: AT25x10-12
Fuel
Fuel Tank Capacity (l / gal.): 36.7 / 9.7
Racks and Payload
Rack Capacity Front (Kg / Lbs.): Unknown / 88
Rack Capacity Rear (Kg / Lbs.): Unknown / 176
Seats
Seat Height (mm / in.): 828 / 32.6
Towing
Towing Capacity (Kg / Lbs.): Unknown / 1102
Lighting
Lighting: Dual 30W Krypton multireflector headlights & 21/5W brake light
Colours
Colors: Hunter Green, Steel Blue, Red
