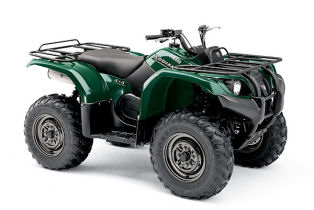

Yamaha Kodiak 400 4x4 Automatic 2006 specs
Below are some specifications of the Yamaha Kodiak 400 4x4 Automatic 2006 model

ATV Type : Utility Quad Bikes
Engine - Engine Detail : 401cc, 4-Stroke Single, Liquid Cooled w/ Fan, SOHC
- Engine Capacity : 401 cc
- Valve Spec : SOHC
- Type : 4-Stroke
- Cooling : Liquid Cooled with Fan
- No of Cylinders : Single
- Bore / Stroke : 84.5 mm x 71.5 mm
- Compression Ratio : 10.5:1
- Ignition : Electric DC – CDI with Auxiliary Pull
Gearbox - Transmission : Yamaha Ultramatic® V-Belt with Forward, Neutral, Reverse and Park
- Final Drive : Yamaha On-Command® push button 2WD, 4WD ; Shaft
Fuel - Fuel System : Mikuni 33mm BSR
- Fuel Tank Capacity (Gal) : 4.0 gal.
- Fuel Tank Capacity (Liters) : 15.14 liters
Dimensions and Weight - Length (Inches) : 78.5 in
- Width (Inches) : 43 in
- Height (Inches) : 44.1 in
- Seat Height (Inches) : 32.7 in
- Ground Clearance (Inches) : 10.8 in
- Wheelbase (Inches) : 48.5 in
- Dry Weight (Lbs) : 578 lb
- Length (mm) : 1994mm
- Width (mm) : 1092mm
- Height (mm) : 1120mm
- Seat Height (mm) : 831mm
- Ground Clearance (mm) : 274mm
- Wheelbase (mm) : 1232mm
- Dry Weight (Kg) : 262 kg
- Turning Circle : 118 in
Suspension, Brakes and Tires - Engine Braking : Front and Rear Wheel
- Suspension - Front : Independent Double Wishbone, 6.3 in with 5-way Preload Adjustment
- Suspension - Rear : Independent Double Wishbone, 7.1 in with 5-way Preload Adjustment
- Brakes - Front : Dual Hydraulic Disc
- Brakes - Rear : Hydraulic Disc
- Tires - Front : AT25 x 8-12
- Tires - Rear : AT25 x 10-12
Carry Racks - Rack Capacity - Front (Lbs) : 88 lb
- Rack Capacity - Rear (Lbs) : 176 lb
Towing Capacity - Towing Capacity (Lbs) : 1102 lb
Instrumentation and Lighting - Instumentation : Speedometer / Odometer & Fuel Gauge
- Lighting : Dual 30W Krypton Multi-reflector Headlights & 21/5W Brake light
Available Colors - Colors : Hardwoods HD Camo, Hunter Green, Steel Blue, Red
Warranty - Warranty Info : 6 Month (Limited Factory Warranty)
|
