2006 Yamaha ATV & Quad Bike Specs

Engine Spec

Engine Detail: 421cc, 4-Stroke Single, Liquid Cooled w/ Fan, SOHC

Engine Capacity (cc / Ci ): 421 cc / 25.7

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Liquid Cooled with Fan

Engine Cylinders: Single

Engine Braking: All Wheel

Displacement To Weight CC: 0.71

Bore Stroke(mm): 84.5 mm x 75 mm

Bore Stroke(in): 3.33in. x 2.96 in.

Compression Ratio: 10:1

Fuel System: Mikuni 33mm BSR

Fuel System Brand: Mikuni

Carburetor Size MM: 33

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric DC – CDI with Auxiliary Pull

Speed Governor: No

Brakes

Brakes Front: Dual Hydraulic Disc

Brakes Rear: Hydraulic Disc

Suspension

Front Suspension: Independent Double Wishbone, 6.3 in with 5-way Preload Adjustment

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 160 / 6.3

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Independent Double Wishbone, 7.1in w/ 5-way Preload Adjustment

Suspension Rear - Material: Steel

Rear Travel (mm / in.): 180.3 / 7.1

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1994 / 78.5

Width (mm / in.): 1092 / 43.0

Height (mm / in.): 1120 / 44.1

Ground Clearance (mm / in.): 274.3 / 10.8

Wheelbase (mm / in.): 1231.9 / 48.5

Dry Weight (Kg / Lbs.): 268.1 / 591

Transmission (Gearbox) and Final Drive

Transmission: Yamaha Ultramatic® V-Belt with Hi,Lo,Neutral,Reverse,Park

Transmission Make: UltraMatic

Final Drive: Yamaha On-Command® push button 3-way locking differential, 2WD, 4WD, locked 4WD; Shaft

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Driveline Make: On-Command

Limited Slip Diff Location: Front

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tires Front: 25 x 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: AT25 x 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 15.14 / 4.0

Racks and Payload

Rack Capacity Front (Kg / Lbs.): Unknown / 88

Rack Capacity Rear (Kg / Lbs.): Unknown / 176

Rack Rails Location: Rear

Rear Rack Storage - Trim: Camouflage

Storage

Storage Capacity (Kg / Lbs.): 39.9 / 88

Underseat Storage: Standard

Seats

Seat Height (mm / in.): 830.6 / 32.7

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Tow Hook: Standard

Rear Hitch: Standard

Towing Capacity (Kg / Lbs.): 499.9 / 1102

Instrumentation

Instumentation: Digital LCD Multi-function display. Speedo, Odometer, Dual Trip, Hour, Clock, Gear Position, & Fuel

Digital Instrumentation: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Speedometer: Standard

Temperature Warning Type: Gauge

Lighting

Lighting: Dual 30W Krypton Multi-reflector Headlights & 21/5W Brake light

Headlights: Standard

Halogen Headlights: Standard

Colours

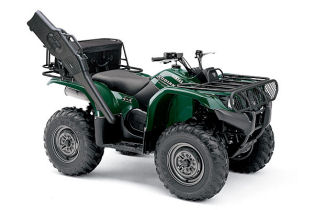

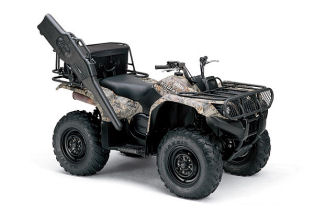

Colors: Hardwoods HD Camo,Hunter Green

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: Yes

CV Boot Cover: Yes

Floor Board Location: Driver

Foot Pegs: Standard

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Gun Scabbard: Standard

Gun Scabbard Mount: Standard

Hand Grips: Standard

Power Outlet: Standard

Radiator Guard: No

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Turning Circle: 118 in

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 16

Parent Company: Yamaha

Warranty Info: 6 Month (Limited Factory Warranty)

2006 Yamaha Kodiak 450 4x4 Automatic Outdoorsman Edition ATV Specs South Africa

Yamaha Kodiak 450 4x4 Automatic Outdoorsman Edition 2006
