2020 Yamaha Raptor 90 ATV Specs South Africa

2020 Yamaha Raptor 90 specs for South Africa:Kids Quad Bikes. Prices, reviews, where to buy.

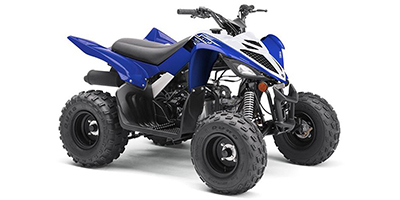

Yamaha Raptor 90

Yamaha Raptor 90 2020

Make

Yamaha

Model

Raptor

Year

2020

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 90 / 5.49

Engine Valves: SOHC

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-Stroke

Engine Cooling: Air

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.32

Bore Stroke(mm): 47mm x 51.8mm

Bore Stroke(in): 1.85in. x 2.04in.

Compression Ratio: 9.2:1

Fuel System: Carburetor

Carburetor Size MM: 13

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Kick

Speed Governor: Yes

Brakes

Brakes Front: Dual Sealed Drum

Brakes Rear: Drum

Suspension

Front Suspension: A-Arm

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 127 / 5

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Swing Arm

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 145 / 5.7

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1487 / 58.56

Width (mm / in.): 1021 / 40.2

Height (mm / in.): 955 / 37.6

Ground Clearance (mm / in.): 99 / 3.9

Wheelbase (mm / in.): 1031 / 40.6

Wet Weight (Lbs. / Kg): 279 / 126.6

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: Yes

Tires and Rims

Tire Make: Duro

Tube / Tubeless: Tubeless

Tires Front: Duro AT 18 X 7-8

Front Tire Diameter (in): 18

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: Duro AT 18 X 9-8

Rear Tire Diameter (in): 18

Rear Tire Width (in): 9

Rear Rim Diameter (in): 8

Rim Material: Steel

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 6.4 / 1.7

Storage

Underseat Storage: Standard

Seats

Seat Height (mm / in.): 749 / 29.5

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lighting

Headlights: Standard

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Full Length Skid Plate: No

Hand Grips: Standard

Hand Guards: No

Light Guard: No

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 10

Parent Company: Yamaha

Warranty Info: 6 Limited
