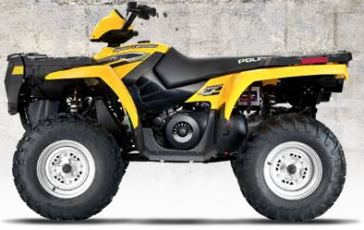

Polaris Sportsman 450 2006 quad bike / atv specs
Below are some specifications of the Sportsman 450 2006 ATV.

Engine
-
Engine Type :
4-stroke
-
Displacement :
455 cc
-
Carburetion :
39mm CV Mikuni
-
Cooling :
Liquid
-
Starting : Electric with recoil backup
Dimensions / Capacities
-
Wheelbase :128.3cm
-
Turning Radius :
(inside tire) 165.1cm
-
Dry Weight :
324.3 kg
-
Length/Width/Height :
210.8x121.9x121.9 cm
-
Seat Height :
85.7cm
-
Fuel Capacity :
16.1L
-
Front-Rack Capacity :
40.8kg
-
Rear-Rack Capacity : 81.6kg
-
Hitch (Tow bar) :
Std / Receiver
-
Hitch Towing Capacity : 555.7kg
-
Hitch Tongue Weight :
54.4kg
-
Ground Clearance : 27.9cm
Suspension
-
Front Suspension :
MacPherson strut with 20.8cm travel
-
Rear Suspension : Fully independent, progressive rate with
anti-roll bar, 24.1cm travel
Brakes
-
Front/Rear Brakes : Single-lever hydraulic disc with hydraulic
rear foot brake
Drivetrain
-
Final Drive :
Shaft
-
Transmission :
P/R/N/L/H
-
Drive System :
Automatic PVT
-
EBS (Engine Braking System) : Accessory
Tires
-
Front Tires :
26x8-12
-
Rear Tires : 26x11-10
Instrumentation / Features
-
Gauge Type :
Digital
-
Speedometer / Odometer :
Standard
-
Tachometer :
Standard
-
Tripmeter :
Standard
-
Hourmeter :
Standard
-
High Beam Indicator :
Standard
-
Gear Indicator :
Standard
-
Fuel Gauge :
Electric
-
Warning Lights :
Hi Temp / Low Battery
-
Rear Work Lights :
Standard
-
DC Outlet : Standard
Colors
-
Colors : Green/Black; Yellow/Black; Blue/Black
|
