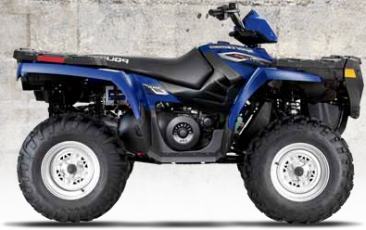

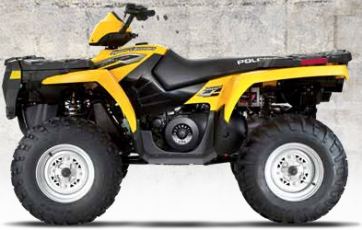

2006 Polaris Sportsman 500 H. O. ATV Specs South Africa

Engine Spec

Engine Detail: 499 cc, 4-stroke, Liquid-Cooled,

Engine Capacity (cc / Ci ): 499 cc / Unknown

Engine Type: 4-stroke

Engine Cooling: Liquid-Cooled

Engine Cylinders: single-cylinder

Fuel System: 40mm CV Mikuni

Ignition: Electric with recoil backup

Brakes

Brakes Front: Single-lever hydraulic disc

Brakes Rear: Single-lever hydraulic disc with hydraulic rear foot brake

Suspension

Front Suspension: MacPherson strut with 20.8cm travel

Suspension Rear: Fully independent, progressive rate with anti-roll bar, 24.1cm travel

Dimensions and Weight

Length (mm / in.): 2108 / 83

Width (mm / in.): 1219 / 48

Height (mm / in.): 1219 / 48

Ground Clearance (mm / in.): 279 / 11

Wheelbase (mm / in.): 1283 / 50.5

Dry Weight (Kg / Lbs.): 324.3 / 715

Transmission (Gearbox) and Final Drive

Transmission: P/R/N/L/H

Final Drive: Automatic PVT Shaft

Tires and Rims

Tires Front: 25x8-12

Tires Rear: 25x11-10

Fuel

Fuel Tank Capacity (l / gal.): 16.1 / 4.25

Racks and Payload

Rack Capacity Front (Kg / Lbs.): 40.8 / Unknown

Rack Capacity Rear (Kg / Lbs.): 81.6 / Unknown

Seats

Seat Height (mm / in.): 857 / 33.7

Towing

Towing Capacity (Kg / Lbs.): 555.7 / Unknown

Colours

Colors: Green/Black; Yellow/Black; Sonic Blue/Black

Steering

Turning Circle: (inside tire) 165.1cm
