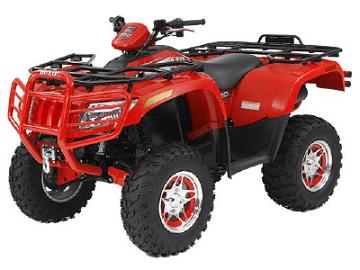

Arctic Cat 500 4x4 Automatic LE 2006 specs
Below are some specifications of the Arctic Cat 500 4x4 Automatic LE 2006 model
ATV Type : Utility Quad Bikes
Engine - Engine Detail : 493cc, SOHC 4-Stroke 4-Valve
- Engine Capacity : 493 cc
- Valve Spec : 4-Valve
- Type : 4-Stroke
- Cooling : Liquid with Fan
- Bore / Stroke : 87.5 mm x 82 mm
Gearbox - Transmission : Automatic CVT with engine braking system
- Final Drive : 2 / 4 WD plus Diff Lock
Fuel - Fuel Tank Capacity (Gal) : 6.5 gal.
- Fuel Tank Capacity (Liters) : 24.6 liters
Dimensions and Weight - Length (Inches) : 84.6 in
- Width (Inches) : 47.5 in
- Height (Inches) : 49.25 in
- Seat Height (Inches) : 0 in
- Ground Clearance (Inches) : 12 in
- Wheelbase (Inches) : 50 in
- Dry Weight (Lbs) : 732 lb
- Length (mm) : 2149mm
- Width (mm) : 1207mm
- Height (mm) : 1251mm
- Ground Clearance (mm) : 305mm
- Wheelbase (mm) : 1270mm
- Dry Weight (Kg) : 332 kg
Suspension, Brakes and Tires - Engine Braking : Yes
- Suspension - Front : Double a-arm with 10 in. travel
- Suspension - Rear : Double a-arm with 10 in. travel
- Brakes - Front : Hydraulic disc
- Brakes - Rear : Hydraulic disc
- Tires - Front : 25 x 8-12
- Tires - Rear : 25 x 11-12
Carry Racks - Rack Capacity - Front (Lbs) : 100 lb
- Rack Capacity - Rear (Lbs) : 200 lb
Towing Capacity - Towing Capacity (Lbs) : 1050 lb
|
