2025 Linhai T-Archon 400 ATV Specs South Africa

2025 Linhai T-Archon 400 specs for South Africa:Utility Quad Bikes. Prices, reviews, where to buy.

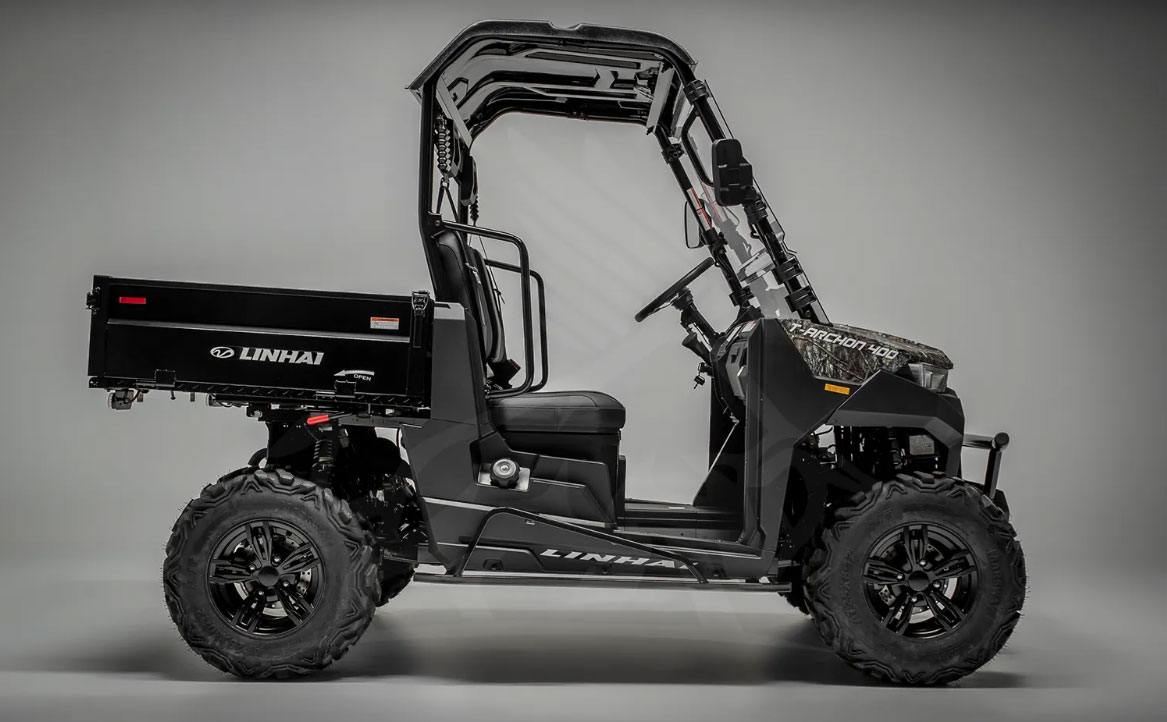

Linhai T-Archon 400

Linhai T-Archon 400 2025

Make

Linhai

Model

T-Archon

Year

2025

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 386 / 23.6

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Liquid-cooled

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 85.0mm x 68.0mm

Bore Stroke(in): 3.35in. x 2.68in.

Compression Ratio: 9.5:1

Fuel System: Carburetor

Fuel Type: Petrol

Ignition: CDI Electronic

Brakes

Brakes Front: Dual hydraulic disc brakes

Front Brake Diameter (mm / in.): 190 / 7.5

Brakes Rear: Sealed mechanical drum brake

Suspension

Front Suspension: Independent double A-arm coil spring oil damped

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 240 / 9.4

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm with single shock coil spring oil damped

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 240 / 9.4

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Dimensions and Weight

Length (mm / in.): 2000 / 78.7

Width (mm / in.): 1150 / 45.3

Height (mm / in.): 1200 / 47.2

Ground Clearance (mm / in.): 240 / 9.4

Wheelbase (mm / in.): 1300 / 51.2

Dry Weight (Kg / Lbs.): 272 / 600

Transmission (Gearbox) and Final Drive

Transmission: 5-speed manual with reverse

Transmission Make: Linhai

Final Drive: Shaft

Drive line Modes: 2WD 4WD

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Limited Slip Diff Location: Front

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Maxxis

Tube / Tubeless: Tubeless

Tires Front: 25 x 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: 25 x 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 10.0 / 2.6

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 850 / 33.5

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 400 / 882

Instrumentation

Digital Instrumentation: Standard

Trip Computer: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): Yes

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: Standard

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Light Guard: No

Radiator Guard: Yes

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: Yes

Shock Cover: No

Snorkel Air Intake: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: China

Recommend Minimum Age: 16

Parent Company: Linhai

Warranty Info: 12-month limited warranty
