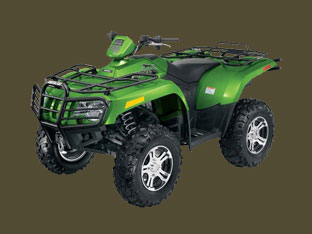

Arctic Cat 550 H1 EFI LE

Arctic Cat 550 H1 EFI LE 2010

Make

Arctic Cat

Model

550

Year

2010

Type

Utility Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: SOHC, 4-stroke, 4-valve

Engine Capacity (cc / Ci ): 545cc / 33.3

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-stroke

Engine Cooling: Liquid-Cooled with fan

Engine Cylinders: single-cylinder

Engine Braking: Engine Braking System

Displacement To Weight CC: 0.76

Bore Stroke(mm): 92mm x 82mm

Bore Stroke(in): 3.62in. x 3.23 in.

Fuel System: Fuel Injected

Fuel Type: Petrol

Ignition: Electric / Pull

Brakes

Brakes Front: Hydraulic disc

Brakes Rear: Hydraulic disc

Linked Brake System Front to Rear: Standard

Suspension

Front Suspension: Double A-arm; 10 in. (25.4 cm) travel

A-Arm Skid Plate (Front): Yes

Suspension - Front Travel (mm / in.): 254 / 10

Front Adjustable Fork Pre-Load: Yes

Front Adjustable Rebound Damping: No

Suspension Rear: Double A-arm; 10 in. (25.4 cm) travel

A-Arm Skid Plate (Rear): Yes

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 254 / 10

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: Yes

Number of Rear Shock Absorbers: 2

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 2197 / 86.5

Width (mm / in.): 1207 / 47.5

Height (mm / in.): 1219 / 48

Ground Clearance (mm / in.): 279.4 / 11

Wheelbase (mm / in.): 1270 / 50

Dry Weight (Kg / Lbs.): 325.2 / 717

Wet Weight (Lbs. / Kg): 3000/1360.8

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Transmission Make: Duramatic

Final Drive: 2/4 WD + differential lock 4x4

Drive line Modes: 2

Primary Drive Engine / Transmission: Belt

Primary Drive - Front Wheels: Shaft

Diff Lock Location: Front

Hi / Low Range: Yes

Reverse: Yes

Tires and Rims

Tire Make: Goodyear

Tires Front: 25 x 8-12

Front Tire Diameter (in): 25

Front Tire Width (in): 8

Front Rim Diameter (in): 12

Tires Rear: 25 x 10-12

Rear Tire Diameter (in): 25

Rear Tire Width (in): 10

Rear Rim Diameter (in): 12

Rim Material: Aluminum

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 22 / 5.7

Racks and Payload

Rack Capacity Front (Kg / Lbs.): 45 / 100

Rack Capacity Rear (Kg / Lbs.): 91 / 200

Storage

Storage Capacity (Kg / Lbs.): 45.4 / 100

Underseat Storage: Standard

Tool Bag Mount: Standard

Glove Box / Dashboard Storage: Standard

Seats

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Towing

Tow Hook: Standard

Rear Hitch: Receiver

Towing Capacity (Kg / Lbs.): 476 / 1050

Instrumentation

Digital Instrumentation: Standard

Trip Computer: Standard

Trip Odometer: Standard

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Tachometer: Standard

Temperature Warning Type: Gauge

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Body Material: Plastic

Brush Guard: Yes

CV Boot Cover: Yes

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: Yes

Hand Grips: Standard

Heated Hand Grip Location: Driver

Light Guard: Yes

Power Outlet: Standard

Radiator Guard: Yes

Rear Bumper: Standard

Rear Fender: Standard

Rear Fender Flairs: Standard

Winch

Winch Make: Warn

Roller Fairlead: Standard

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: USA

Recommend Minimum Age: 16

Parent Company: Arctic Cat
