2025 Suzuki QuadSport Z50 ATV Specs South Africa

2025 Suzuki QuadSport Z50 specs for South Africa:Kids Quad Bikes. Prices, reviews, where to buy.

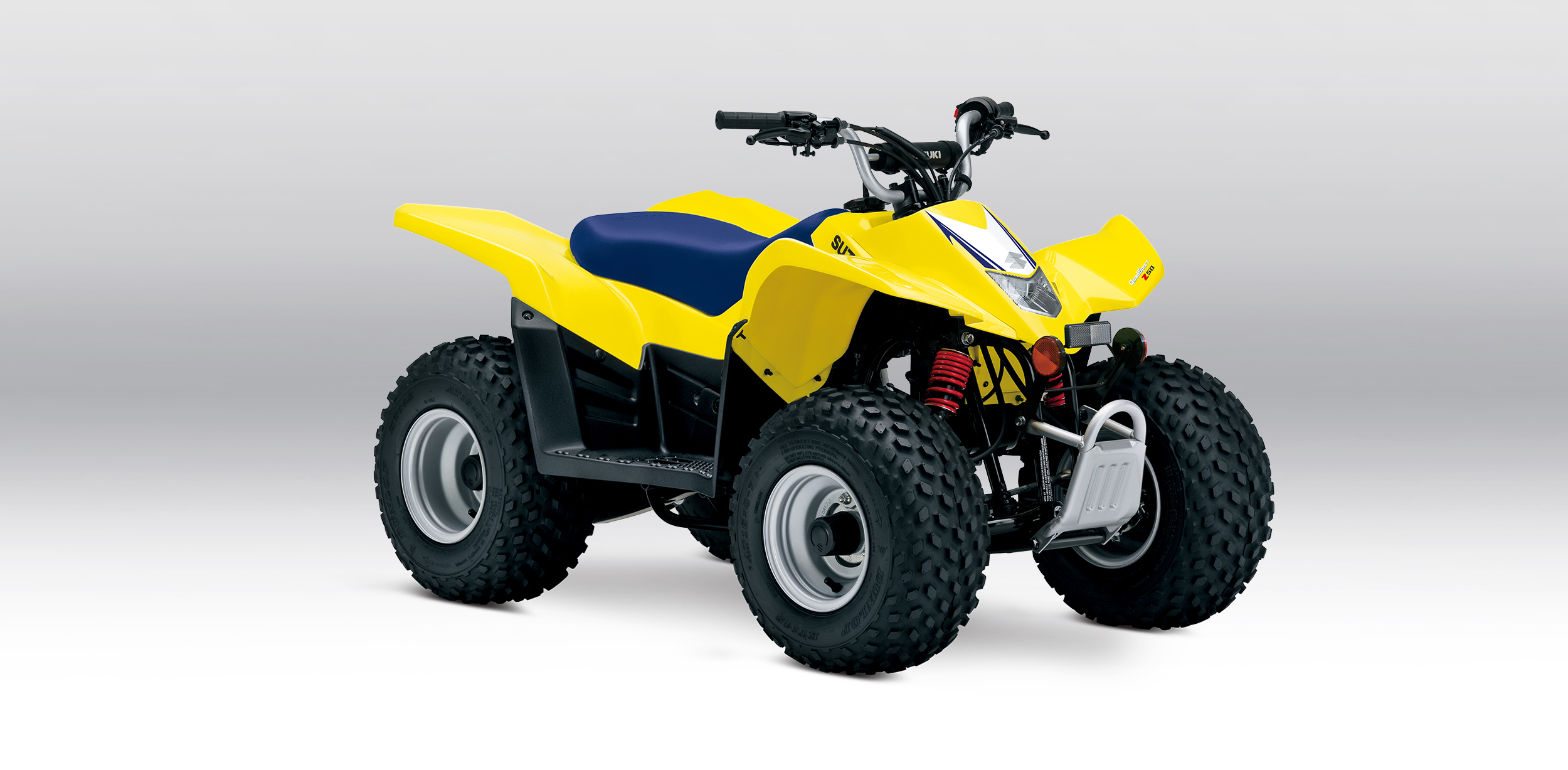

Suzuki QuadSport Z50

Suzuki QuadSport Z50 2025

Make

Suzuki

Model

QuadSport

Year

2025

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Capacity (cc / Ci ): 49 / 3.0

Engine Valves: SOHC

Valve Configuration: 4-valves

Total Valves: 4

Engine Type: 4-Stroke

Engine Cooling: Air-cooled

Engine Cylinders: Single-Cylinder

Bore Stroke(mm): 36.0mm x 48.6mm

Bore Stroke(in): 1.42in. x 1.91in.

Compression Ratio: 8.4:1

Fuel System: Mikuni VM13 carburetor

Fuel Type: Petrol

Ignition: CDI Electronic

Brakes

Brakes Front: Drum brakes

Brakes Rear: Drum brake

Suspension

Front Suspension: Independent swing axle coil spring oil damped

A-Arm Skid Plate (Front): Yes

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm coil spring oil damped

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Dimensions and Weight

Length (mm / in.): 1270 / 50.0

Width (mm / in.): 760 / 29.9

Height (mm / in.): 765 / 30.1

Ground Clearance (mm / in.): 120 / 4.7

Wheelbase (mm / in.): 830 / 32.7

Dry Weight (Kg / Lbs.): 78 / 171

Transmission (Gearbox) and Final Drive

Transmission: Automatic V-belt with centrifugal clutch

Transmission Make: QuadMatic

Final Drive: Chain

Drive line Modes: 2WD

Primary Drive Engine / Transmission: Chain

Primary Drive - Front Wheels: NULL

Limited Slip Diff Location: NULL

Diff Lock Location: NULL

Hi / Low Range: No

Reverse: No

Tires and Rims

Tire Make: Dunlop

Tube / Tubeless: Tubed

Tires Front: AT16 x 8-7

Front Tire Diameter (in): 16

Front Tire Width (in): 8

Front Rim Diameter (in): 7

Tires Rear: AT16 x 8-7

Rear Tire Diameter (in): 16

Rear Tire Width (in): 8

Rear Rim Diameter (in): 7

Rim Material: Steel

Rear Solid Axle: No

Fuel

Fuel Tank Capacity (l / gal.): 2.7 / 0.7

Racks and Payload

Front Rack: Standard

Rear Rack: Standard

Storage

Fender Storage Location: Front

Front Storage Well: Standard

Rear Storage Well: Standard

Storage Capacity (Cu. ft): 0.33

Storage Capacity (gal): 2.5

Storage Capacity (l): 9.46

Seats

Seat Height (mm / in.): 535 / 21.1

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Instrumentation

Digital Instrumentation: Standard

Trip Computer: No

Trip Odometer: No

Clock: Standard

Fuel Level Warning Type: Gauge

Hour Meter: Standard

Service Reminder: Standard

Speedometer: Standard

Temperature Warning Type: Light

Lighting

Lighting: Halogen

Headlights: Standard

Halogen Headlights: Standard

Colours

Metallic: No

Exterior - Safety and Design

Bash Plate (Front): No

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Floor Board Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender Flairs: Standard

Front Fender: Standard

Front Stabilizer Bar: No

Full Length Skid Plate: No

Hand Grips: Standard

Light Guard: No

Radiator Guard: No

Rear Fender: Standard

Rear Fender Flairs: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Snorkel Air Intake: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Japan

Recommend Minimum Age: 6

Parent Company: Suzuki

Warranty Info: 12-month limited warranty
