2008 Can-Am DS 90 X ATV Specs South Africa

2008 Can-Am DS 90 X specs for South Africa:Kids Quad Bikes. Prices, reviews, where to buy.

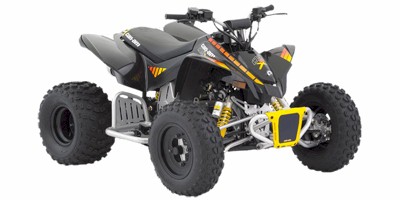

Can-Am DS 90 X

Can-Am DS 90 X 2008

Make

Can-Am

Model

DS

Year

2008

Type

Kids Quad Bikes

Compare This Quad

Add to side-by-side comparison (up to 4 quads)

View Comparison

Engine Spec

Engine Detail: 4-stroke, single, 2-valve

Engine Capacity (cc / Ci ): 90cc / 5.49

Engine Valves: OHV

Valve Configuration: 2-valves

Total Valves: 2

Engine Type: 4-stroke

Engine Cooling: Air / Oil-Cooled

Engine Cylinders: Single-Cylinder

Displacement To Weight CC: 0.37

Bore Stroke(mm): 49.5mm x 48mm

Bore Stroke(in): 1.95in. x 1.89in.

Fuel System: Carburetor

Fuel System Brand: Keihin

Carborator Count: 1

Fuel Type: Petrol

Ignition: Electric / Kick

Kill Switch Tether Cord: Standard

Speed Governor: Yes

Brakes

Brakes Front: Double drum

Brakes Rear: Drum

Suspension

Front Suspension: Independent A-arm; 3.4 in. (86 mm) travel

A-Arm Skid Plate (Front): No

Suspension - Front Travel (mm / in.): 178 / 7

Front Adjustable Fork Pre-Load: No

Front Adjustable Rebound Damping: No

Suspension Rear: Swingarm; 6.3 in. (160 mm) travel

Suspension Rear - Material: Steel

A-Arm Skid Plate (Rear): No

Swing Arm Skid Plate: No

Rear Travel (mm / in.): 229 / 9

Rear Adjustable Rebound Damping: No

Rear Adjustable Shock Spring Pre-Load: No

Number of Rear Shock Absorbers: 1

Air Adjustable: No

Dimensions and Weight

Length (mm / in.): 1519 / 59.8

Width (mm / in.): 904 / 35.6

Height (mm / in.): 935 / 36.8

Ground Clearance (mm / in.): 211 / 8.3

Wheelbase (mm / in.): 1000 / 39.4

Dry Weight (Kg / Lbs.): 111 / 245

Transmission (Gearbox) and Final Drive

Transmission: Continuously Variable (CVT)

Final Drive: 4X2

Drive line Modes: 1

Primary Drive Engine / Transmission: Belt

Primary Drive - Rear Wheels: Chain

Hi / Low Range: No

Reverse: Yes

Tires and Rims

Tires Front: 19 x 7 x 8 in. (482.6 x 178 x 203 mm)

Front Tire Diameter (in): 19

Front Tire Width (in): 7

Front Rim Diameter (in): 8

Tires Rear: 18 x 9.5 x 8 in. (483 x 241 x 203 mm)

Rear Tire Diameter (in): 18

Rear Tire Width (in): 10

Rear Rim Diameter (in): 8

Rim Material: Aluminum

Rear Solid Axle: Yes

Fuel

Fuel Tank Capacity (l / gal.): 6 / 1.6

Storage

Front Storage Well: Standard

Seats

Seat Height (mm / in.): 685 / 27

Number Of Seats: 1

Seat Location: Driver

Seat Material: Vinyl

Seat Type: One-Piece

Seat Adjustable: No

Lighting

Other Lights: Standard

Colours

Metallic: No

Comfort

Adjustable Throttle: Standard

Exterior - Safety and Design

Bash Plate (Front): Yes

Bash Plate (Rear): No

Body Material: Plastic

Brush Guard: No

CV Boot Cover: No

Decal Kit: Standard

Floor Board Location: Driver

Foot Peg Location: Driver

Folding Foot Pegs: No

Frame: Steel

Front Bumper: Standard

Front Fender: Standard

Full Length Skid Plate: No

Hand Grips: Standard

Hand Guards: No

Handlebar Pads: Standard

Light Guard: No

Nerf Bars: Standard

Radiator Guard: No

Rear Bumper: Standard

Rear Fender: Standard

Rear Stabilizer Bar: No

Shock Cover: No

Steering

Steering Type: Manual

Manufacturer and Warranty

Manufacturer Country: Canada

Recommend Minimum Age: 12

Parent Company: Can-Am
