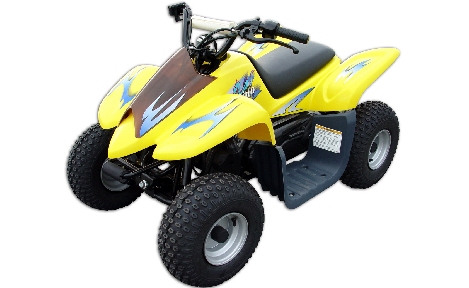

Dinli Dino 50 2007 specs
Below are some specifications of the Dinli Dino 50 2007 model
ATV Type : Kids Quad Bikes
Model ID : DL501-50
Engine - Engine Detail : 2-stroke single, oil injection
- Engine Capacity : 49 cc
- Type : 2-stroke
- Cooling : Air-cooled
- No of Cylinders : single-cylinder
- Bore / Stroke : 40.0 mm x 39.2 mm
- Compression Ratio : 7.2:1
- Ignition : Electric / kick
Gearbox - Transmission : Automatic (CVT-belt)
- Final Drive : Chain 428 O-ring
Fuel - Fuel Tank Capacity (Gal) : 0.67 gal.
- Fuel Tank Capacity (Liters) : 2.54 liters
Dimensions and Weight - Length (Inches) : 47.6 in
- Width (Inches) : 28.7 in
- Height (Inches) : 26.4 in
- Seat Height (Inches) : 20.9 in
- Ground Clearance (Inches) : 0 in
- Wheelbase (Inches) : 33.5 in
- Dry Weight (Lbs) : 163 lb
- Length (mm) : 1209mm
- Width (mm) : 729mm
- Height (mm) : 671mm
- Seat Height (mm) : 531mm
- Wheelbase (mm) : 851mm
- Dry Weight (Kg) : 73.94 kg
Suspension, Brakes and Tires - Suspension - Front : Rocker-arm with hydraulic shocks with 2 in. travel
- Brakes - Rear : Mechanical discs
- Tires - Front : Kenda 145/70-6
- Tires - Rear : Kenda 145/70-6
Carry Racks - Rack Capacity - Front (Lbs) : 100 lb
|
